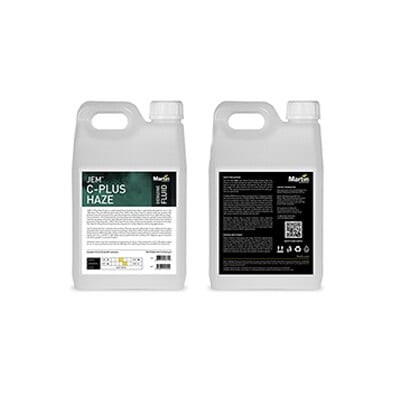

JEM C-Plus Haze Fluid

JEM™ C-Plus Haze Fluid is a water-based haze fluid formula that is specifically designed for use in the JEM Hazer Pro and JEM Compact Hazer Pro. JEM C-Plus Haze Fluid is a dense molecular formula that produces very fine haze particles, specially designed to emphasize beam and mid-air light effects, projections and lasers. The fluid produces an evenly dispersed atmospheric haze for optimal visual clarity while maintaining a peak refraction index. Besides delivering a unique effect C-Plus Haze Fluid is formulated to generate a long hang time. JEM C-Plus Haze Fluid is very economical and yields a low level of consumption ideal for the precision of performance based art in clubs, theatres and touring applications.

Finest and densest haze particles in its class
Superior hang time and optical clarity
Water-based fluid formula leaves little residue
Produced with ultra-pure, de-ionized water
Ghost white color
Available in various size containers to suit your needs
Actors’ Equity and Broadway League Approved

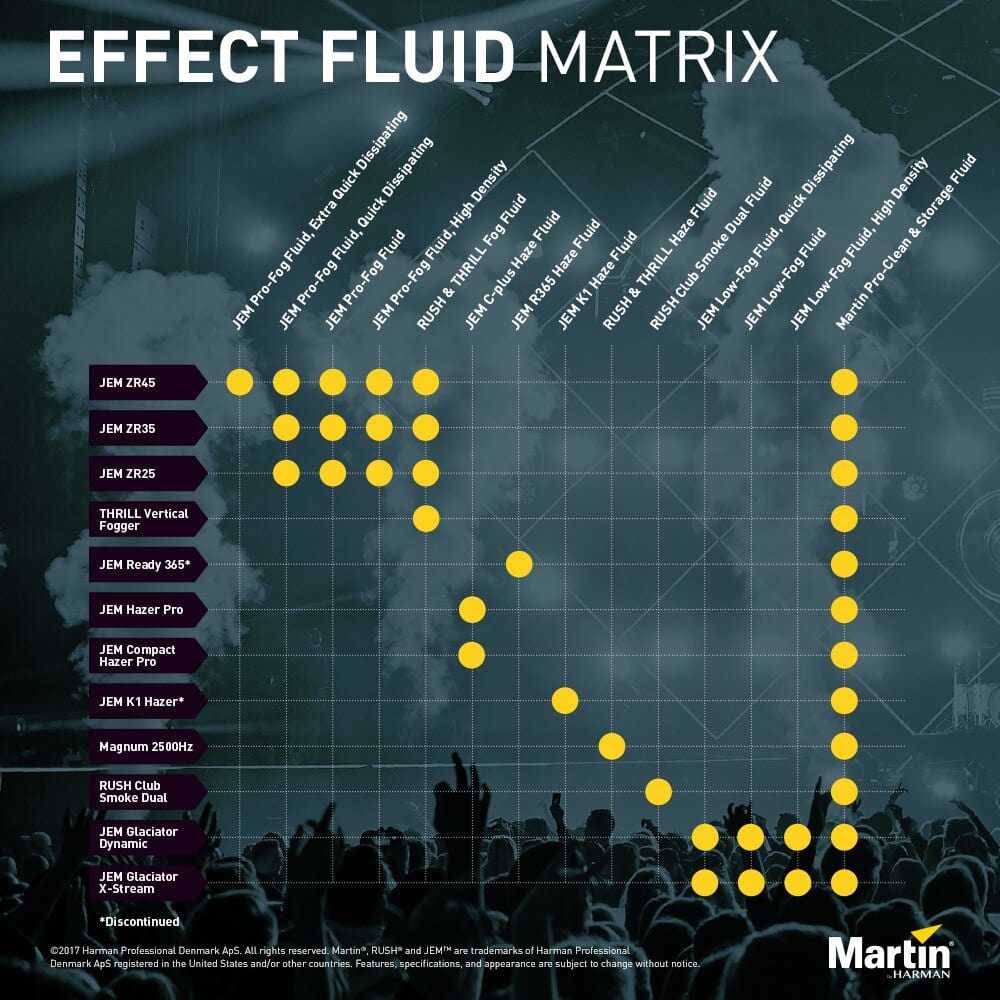

For use in the JEM Compact Hazer & JEM Hazer Pro

SPECIFICATIONS

PHYSICAL

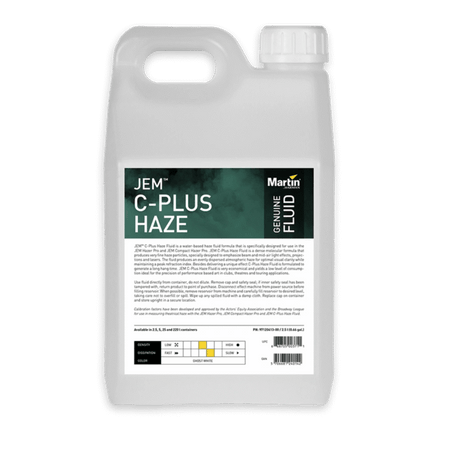

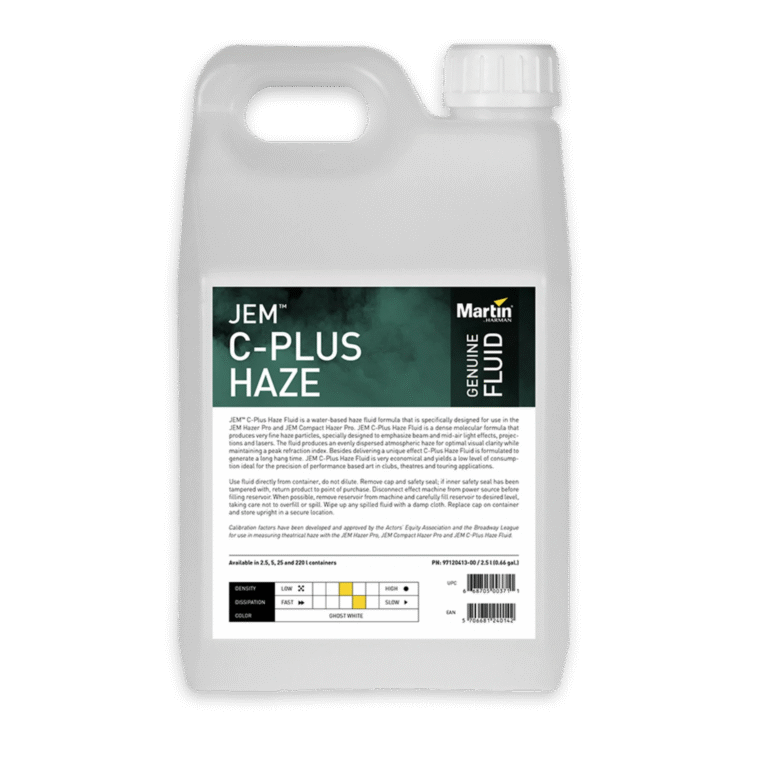

JEM C-Plus Haze Fluid,
2.5 l: Bottle: P/N 97120413-00
Case: P/N 97120413
Bottle dimensions, 2.5 l (L x W x H):
140 x 110 x 216 mm (5.5 x 4.3 x 8.5 in.)
Bottle weight: 2.6 kg (5.8 lb.)
Pieces per case: 4
Case dimensions (L x W x H):
280 x 220 x 250 mm (11 x 8.7 x 9.8 in.)
Weight of case: 12 kg (27 lb.)
Cases per pallet: 48
Pallet dimensions (L x W x H):
1200 x 800 x 1200 mm (47.3 x 31.5 x 47.3 in.)
Weight of pallet quantity: 589 kg (1299 lb.)

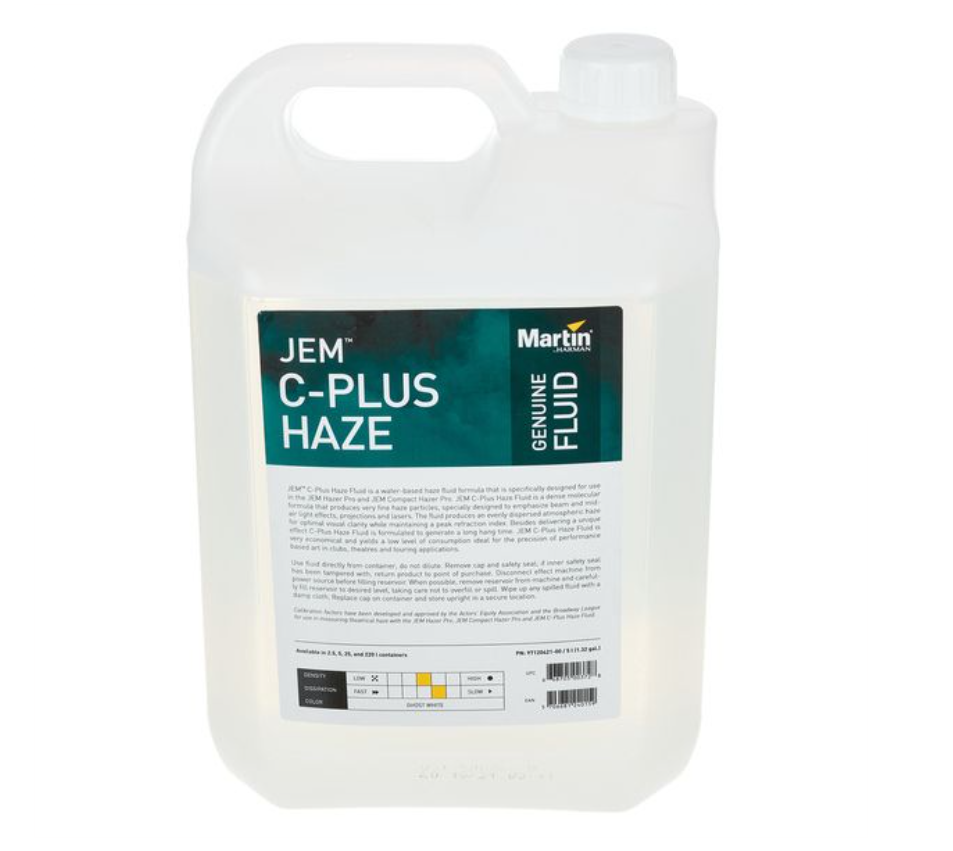

JEM C-Plus Haze Fluid,
5 l: Bottle: P/N 97120421-00
Case: P/N 97120421
Bottle dimensions,
5 l: 186 x 132 x 280 mm (7.3 x 5.2 x 11 in.)
Bottle weight: 5.1 kg (11.3 lb.)
Pieces per case: 4
Case dimensions (L x W x H):
370 x 290 x 300 mm (14.6 x 11.4 x 11.8 in.)
Weight of case: 22 kg (49 lb.)
Cases per pallet: 30
Pallet dimensions (L x W x H):
1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.)
Weight of pallet quantity: 673 kg (1484 lb.)

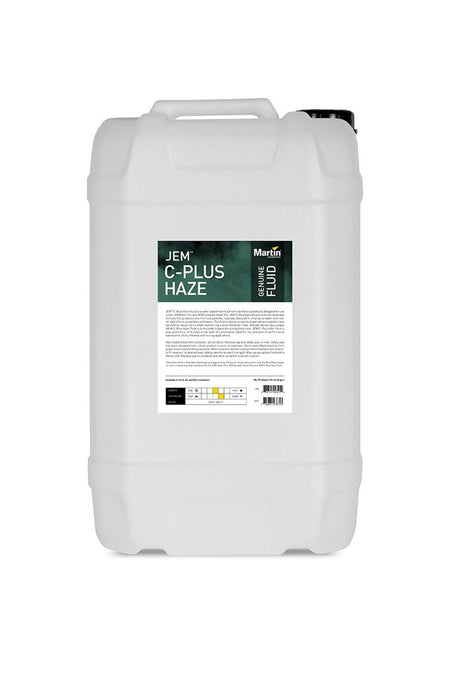

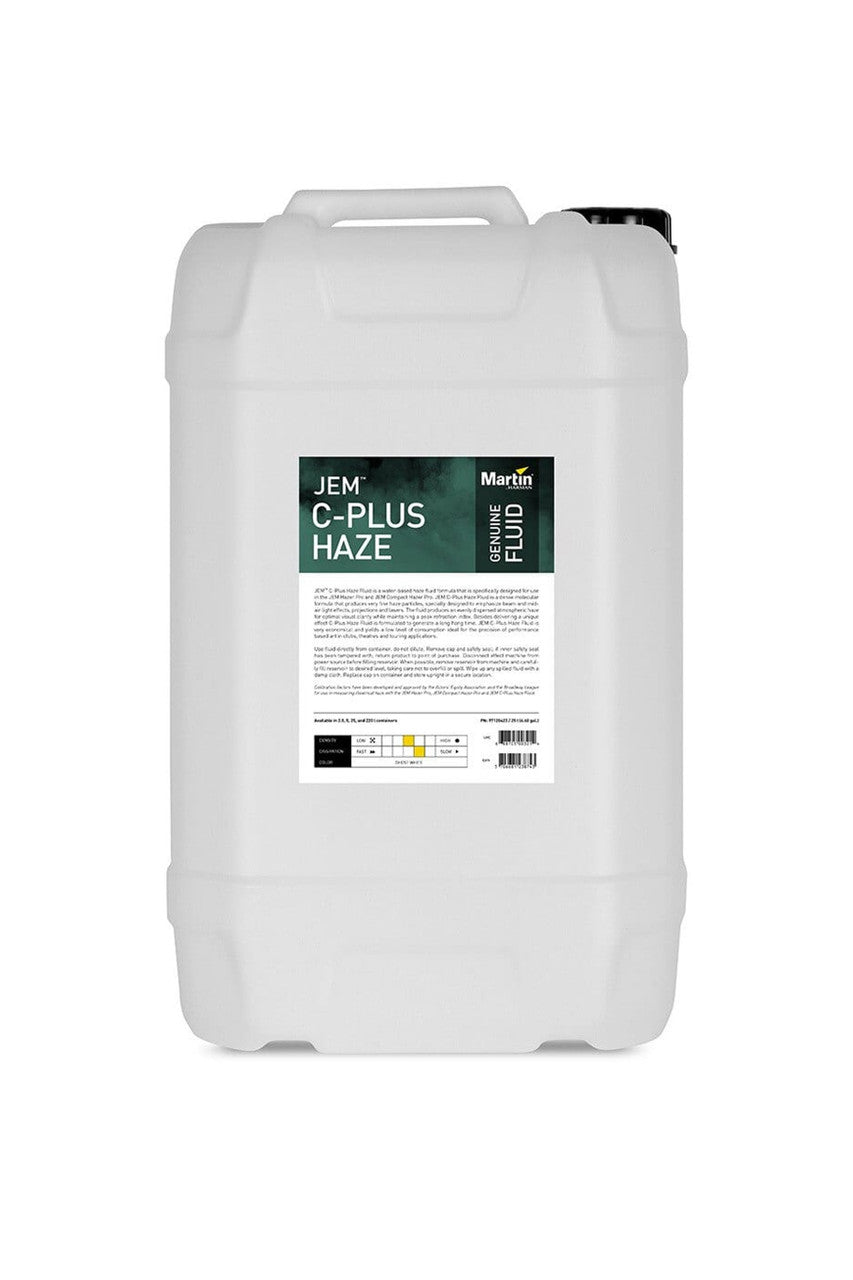

JEM C-Plus Haze Fluid, 25 l: P/N 97120423
Container dimensions, 25 l (L x W x H):
440 x 270 x 250 mm (17.4 x 10.7 x 9.9 in.)
Weight of container: 26 kg (58 lb.)
No outer packaging
Containers per pallet: 24
Pallet dimensions (L x W x H):
1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.)
Weight of pallet quantity: 639 kg (1409 lb.)

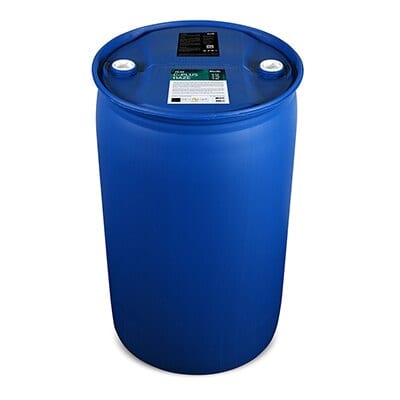

JEM C-Plus Haze Fluid, 220 l: P/N 97120422
Container dimensions, 220 l (L x W x H):
600 x 600 x 900 mm (23.7 x 23.7 x 35.5 in.)
Weight of container: 230 kg (508 lb.)
No outer packaging
Containers per pallet: 2
Pallet dimensions (L x W x H):
1200 x 800 x 1100 mm (47.3 x 31.5 x 47.3 in.)
Weight of pallet quantity: 475 kg (1048 lb.)

THERMAL

Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
5° C (41° F)

ORDERING INFORMATION

JEM C-Plus Haze Fluid, 2.5 L: P/N 97120413-00*
JEM C-Plus Haze Fluid, 4x 2.5 L: P/N 97120413
JEM C-Plus Haze Fluid, 5 L: P/N 97120421-00*
JEM C-Plus Haze Fluid, 4x 5 L: P/N 97120421
JEM C-Plus Haze Fluid, 25 L: P/N 97120423
JEM C-Plus Haze Fluid, 220 L: P/N 97120422**
*Minimum order quantity 4-pieces; use P/N for 4x case
**Made to order, 4-8 week lead-time

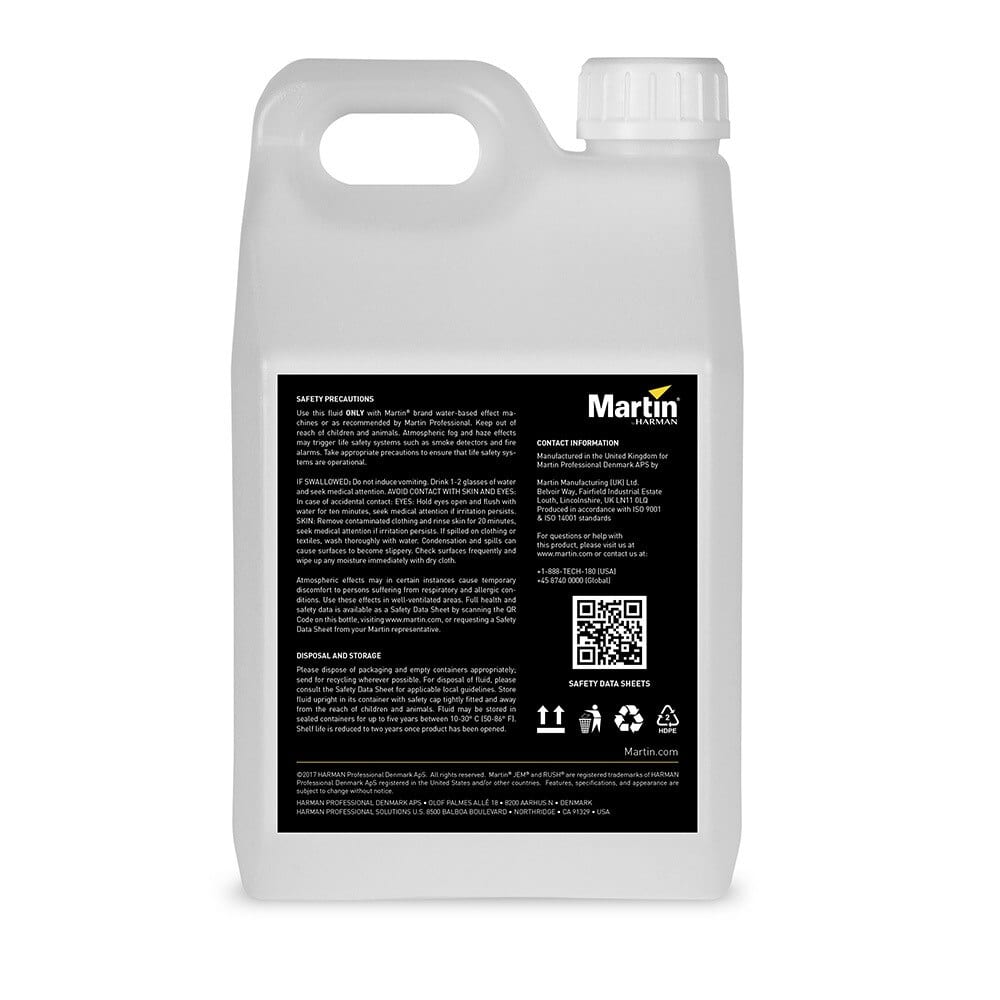

STORAGE

Storage position: Upright only
Ambient temperature: 10 – 30° C (50 – 86° F)
Shelf life maximum, sealed: 5-Year
Shelf life, opened: 2-Year reduction once
opened from maximum

See Safety Data Sheets (SDS) for comprehensive
safety and storage information.

APPROVALS

“Calibration factors have been developed and
approved by the Actors’ Equity Association and
the Broadway League for use in measuring
theatrical haze with the JEM Hazer Pro, JEM
Compact Hazer Pro and JEM C-Plus Haze Fluid.”
