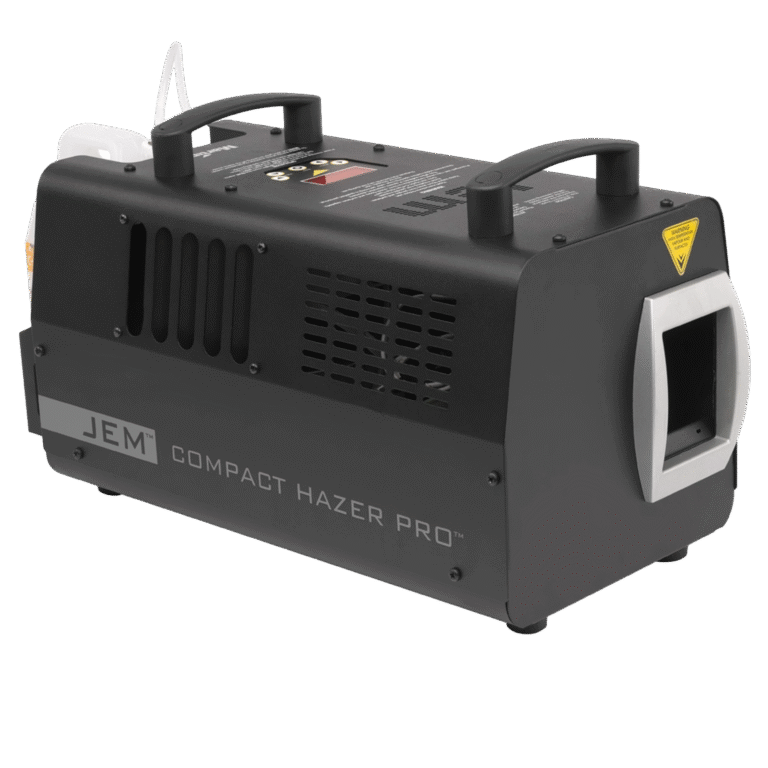

JEM COMPACT HAZER PRO
COMPACT-SIZED PROFESSIONAL WATER-BASED HAZE MACHINE
Robust yet small and lightweight, the JEM Compact Hazer Pro is a versatile haze machine designed for the highly demanding professional market. Its ability to produce exceptional atmospheric haze effects in a short period of time while operating at low noise levels make it ideal for nearly any application from shows and events to theatre, TV studios, clubs, cruise ships, theme parks and more.
- Ultra-fast 1 minute ready time
- Shutdown cycle to prevent clogging
- Actors’ Equity/Broadway League Approved
SPECIFICATIONS
PHYSICAL
Length: 532 mm (21 in.)
Width: 224 mm (8.9 in.)
Height: 278 mm (11 in.)
Height with hanging bracket: 296 mm (11.7 in.)
Weight, dry: 8.5 kg (18.8 lbs.)
Weight, filled: 11 kg (24.3 lb.)
ELECTRICAL
EU Model:
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 4.4 A @ 230 V *
Power Consumption
Typical: 1010 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 8.7 A @ 110 V *
Power Consumption
Typical: 1042 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PERFORMANCE
Coverage volume: 3800 m3 (134,196 ft3) per hour
Operating time with 2.5 l of fluid (min/max): 20/70 Hours
Ready time: 1-minute
Continuous effect output
CONTROL AND PROGRAMMING
Control options: Digital control panel, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Haze and fan: Independent variable output, 0-100%
DMX channels: 3 (Haze, Fan, Control)
Self-cleaning cycle: Manually engaged or DMX trigger
DMX compliance: ANSI E1.11 – USITT DMX512-A
CONSTRUCTION
Housing: Steel & aluminum
Color: Black
Airflow control: Optional Air Director
Heat exchanger: 900 W, thermally protected
Blower fan: Integrated, 200-2500 RPM
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
INSTALLATION
Mounting: Standing or optional hanging kit
Orientation: Up to +/- 30° from horizontal
Clearance around machine: 100 mm (4 in.)
CONNECTIONS
AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
THERMAL
Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature: 30° C (86° F)
APPROVALS
EU safety: EN 60 335-1
EU EMC: EN 61000-6-3, EN 62233
EU immunity: EN 61000-6-1
Australia/NZ: RCM (pending)
United Kingdom: UKCA
Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Compact Hazer Pro and JEM C-Plus Haze Fluid
INCLUDED ITEMS
Fluid reservoir, 2.5 l: P/N 34300521
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N M11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N M11501044
ACCESSORIES
JEM Compact Hazer Pro, Air Director: P/N 92625011
JEM Compact Hazer Pro, Flying Kit: P/N 92610003
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved fluids*: JEM C-Plus Haze Fluid
JEM Pro Clean and Storage Fluid
Approved discontinued fluids*: JEM Pro Clean Supreme
Service Tools: Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
*Various sizes available – contact your dealer or see ‘Fluids’ product pages for details
ORDERING INFORMATION
JEM Compact Hazer Pro, 230V, EU: P/N 92225950
JEM Compact Hazer Pro, 120V, US: P/N 92225960
