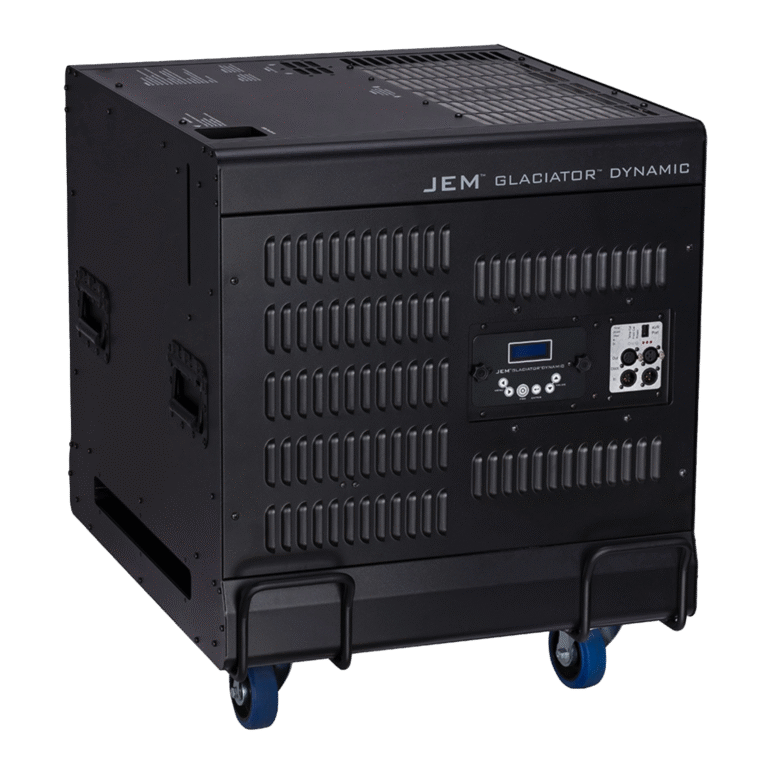

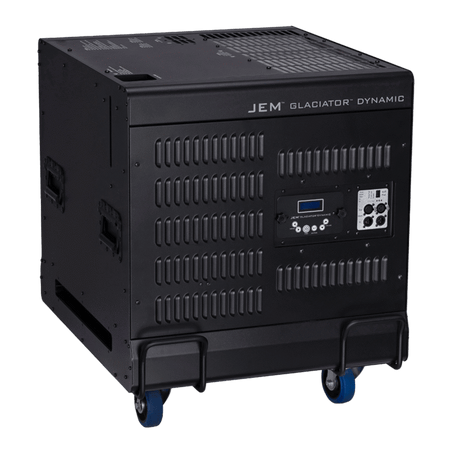

JEM GLACIATOR DYNAMIC
ALL-IN-ONE SELF-CONTAINED LOW-FOG MACHINE

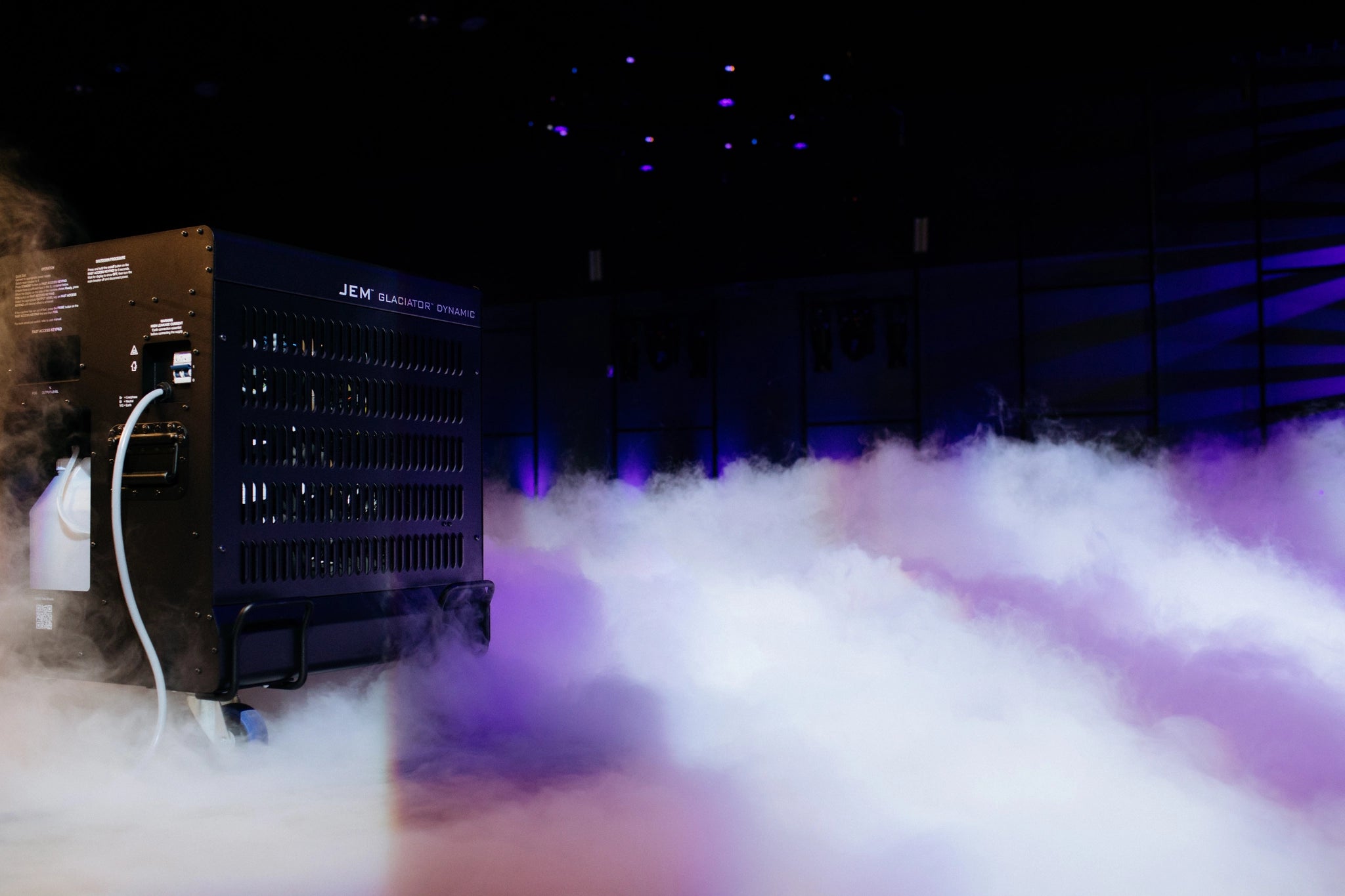

Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications.
Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage and amaze.
- Completely self-contained low-fog system—no industrial gases or ice
- Closed-loop refrigeration for colder, dense, longer-lasting low-fog
- Ultra-quiet operation, including low ambient noise in standby
SPECIFICATIONS
PHYSICAL
Length: 785 mm (30.91 in.)
Width: 648 mm (25.52 in.)
Height: 769 mm (30.29 in.)
Height without castors: 636 mm (25.06 in.)
Weight, dry: 124 kg (274 lb.)
Weight, filled: 129 kg (285 lb.)
ELECTRICAL
AC power: 208-250 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 20.0 A
Power Factor: 0.96 @ 208 V / 220 V /230 V / 240 V
Typical current draw: 17.8 A @ 208 V , 16.9 A @ 220 V , 15.6 A @ 230 V , 15.2 A @ 240 V *
Power Consumption
Maximum: 3500 W
Typical: 3350 W *
Idle: 10 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Idle: no output, cooler off.
PERFORMANCE
Coverage volume: 80 m3 (2825 ft3) minute
Fluid consumption, continuous maximum output: 70 ml minute
Ready time (minimum): 5-minutes
Ready time (optimal): 7-minutes
Continuous effect output
CONTROL AND PROGRAMMING

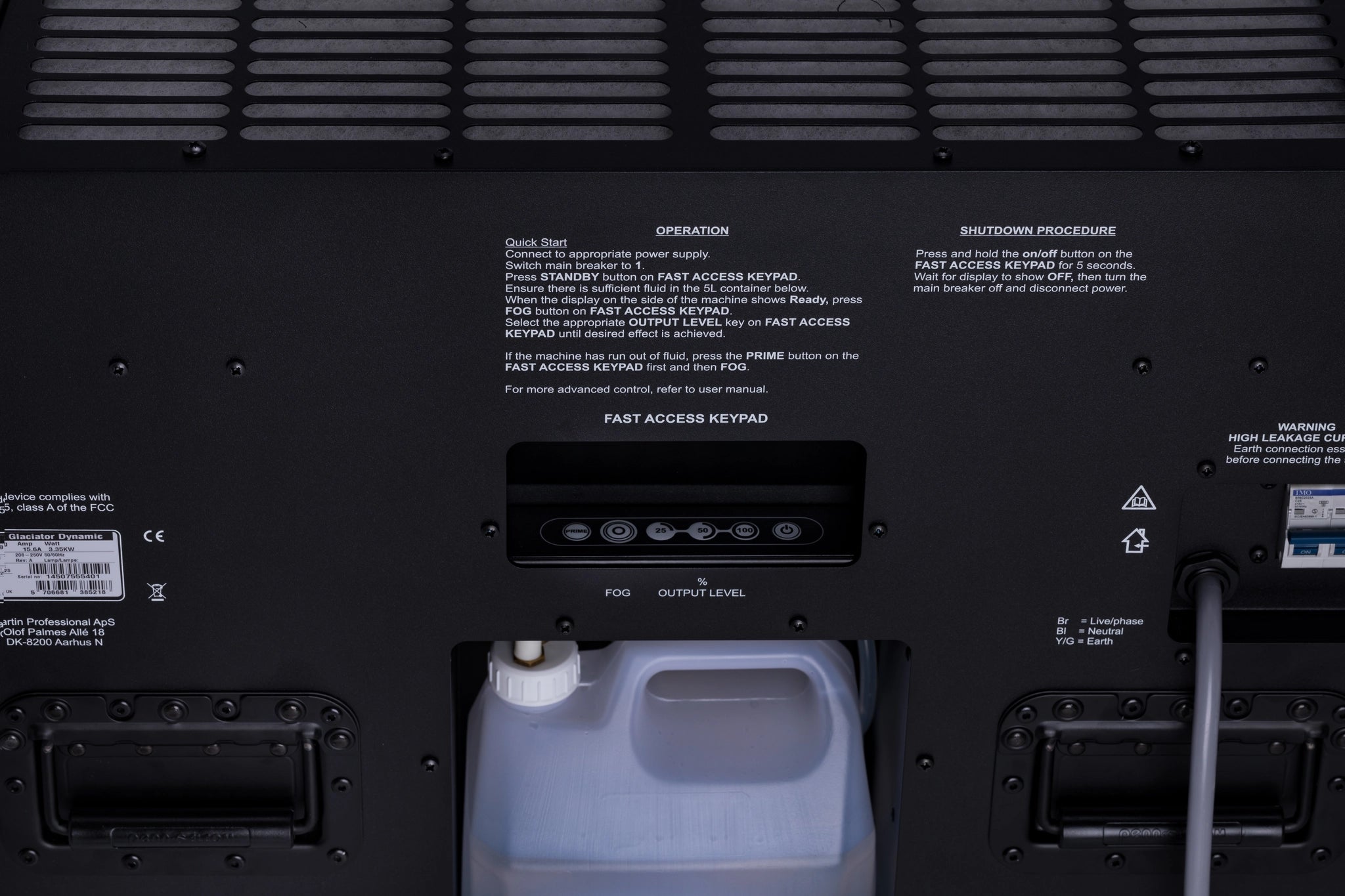

Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/client
Control parameters: Continuous or timer-controlled output

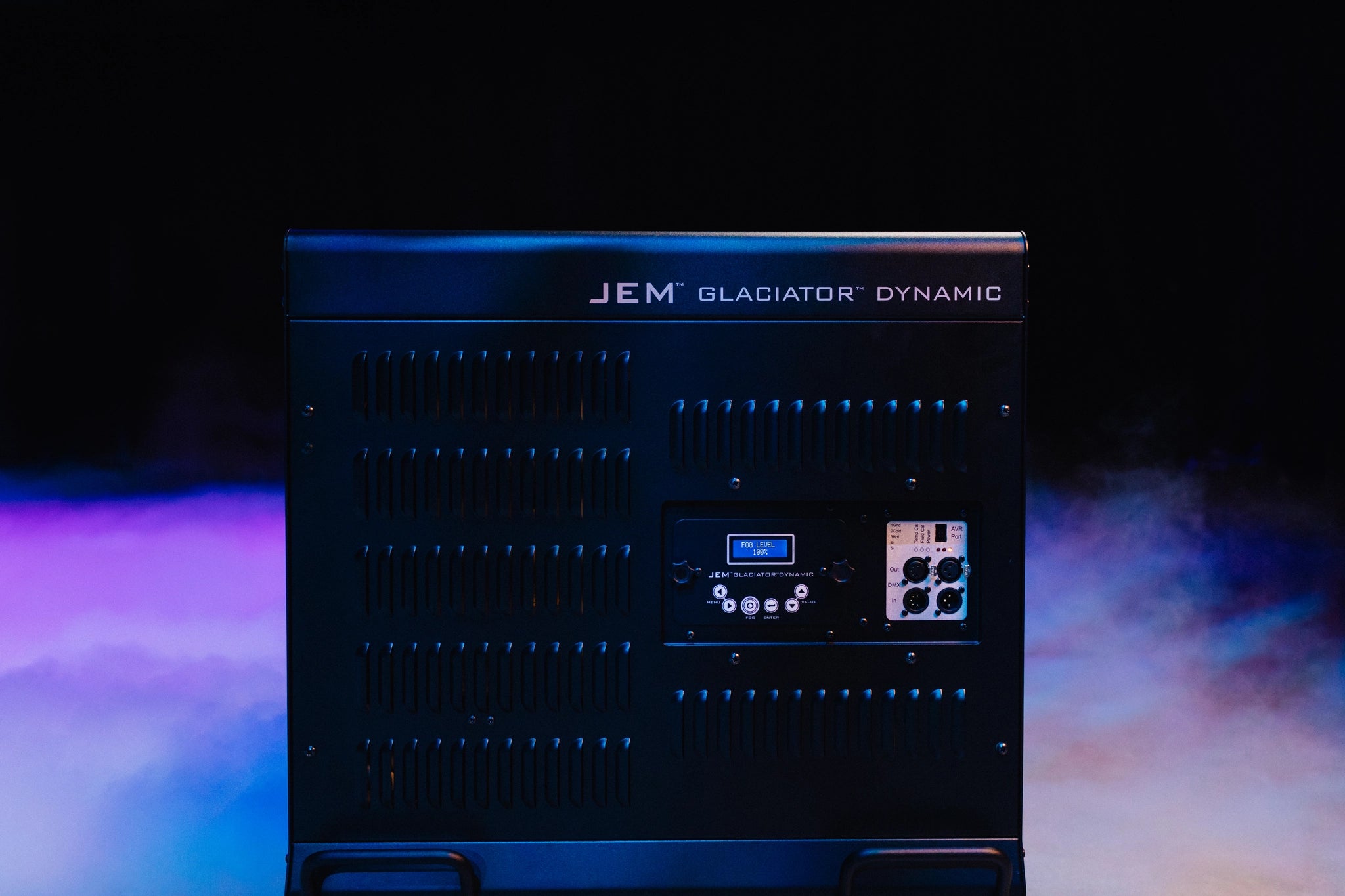

Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM
Low-Fog/Fan: Proportionally controlled output, 0-100%
DMX channels: 1/2
DMX compliance: ANSI E1.11 – USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
CONSTRUCTION
Housing: Steel
Color: Black

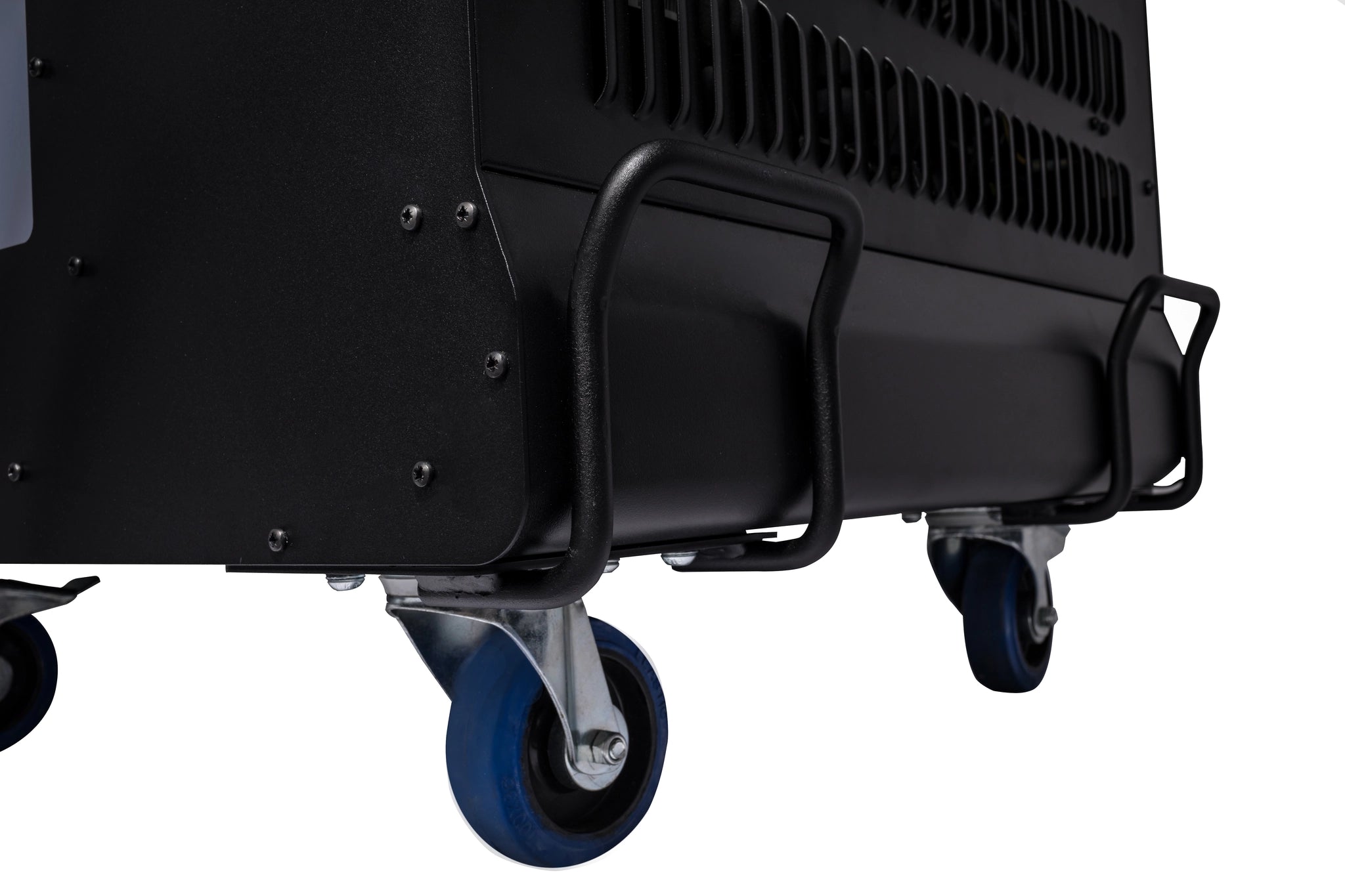

Portability: Removable castors
Protection rating: IP20
Heat exchanger: 2500 W, thermally protected
Fluid pump, low-fog fluid: Oscillating piston, high-pressure
Fluid pump, waste condensate: Peristaltic pump, low-pressure
Fluid management, low-fog fluid: Fluid out sensing, sealed for transportation
Fluid management, waste condensate: Visual sight gauge, LED illuminated reservoir

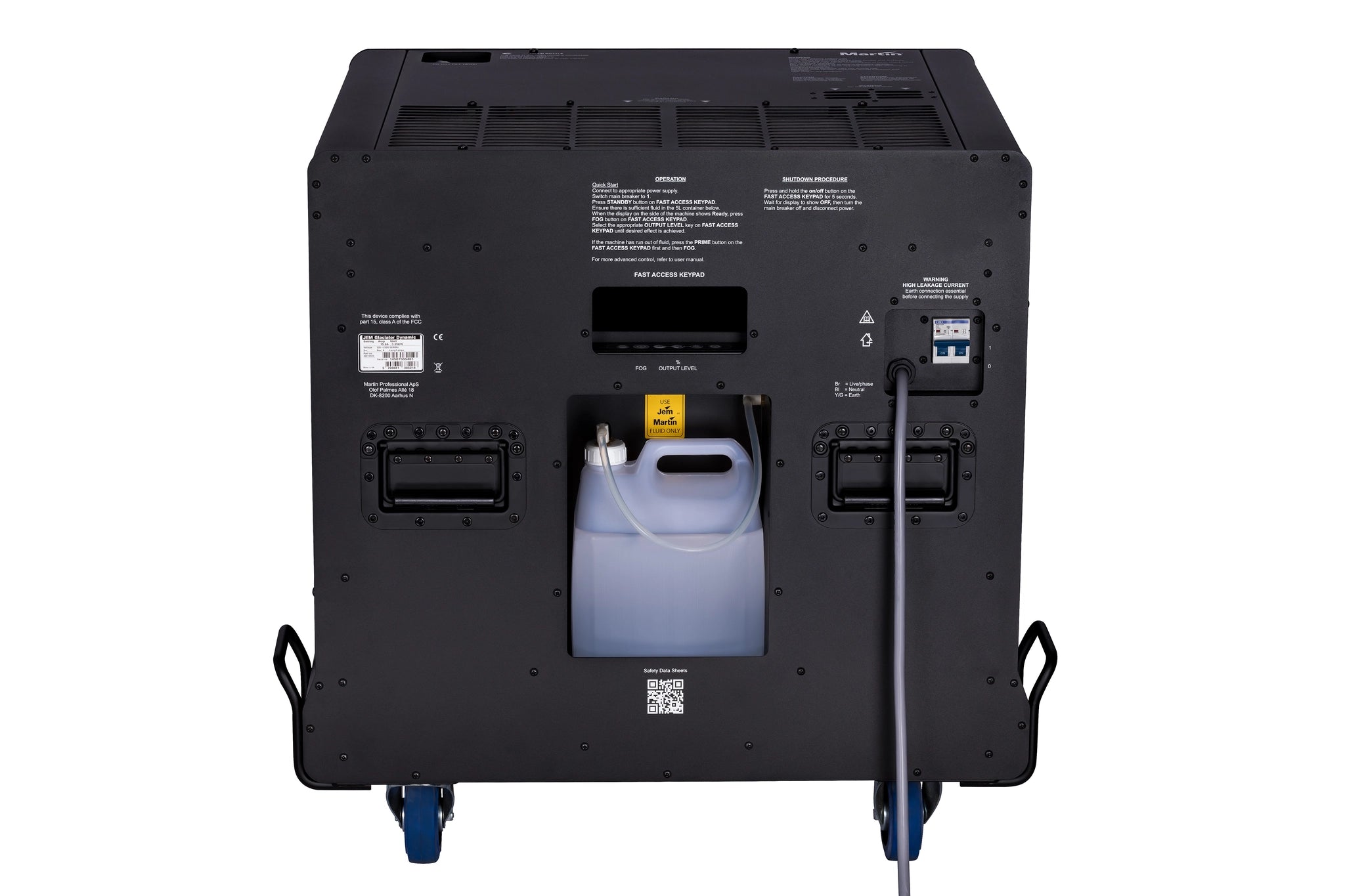

Fluid reservoir, low-fog fluid: 5 l drop-in reservoir w/ quick connect fitting or external source

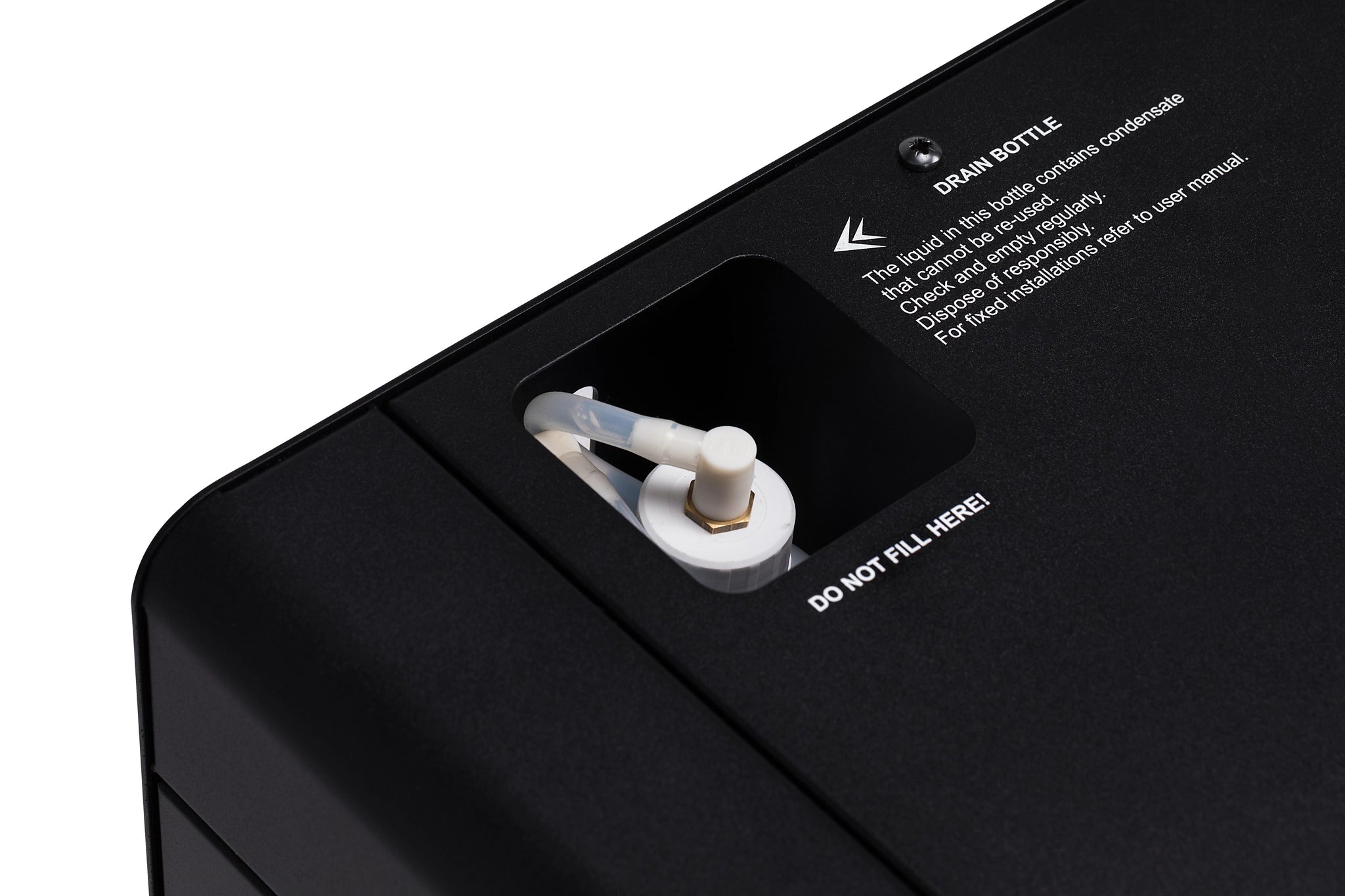

Fluid reservoir, waste condensate: 0.5 l drop in reservoir w/ quick connect fitting or external source
Refrigeration: Closed loop system, variable speed condenser fans, electronic expansion valve
Refrigeration control: PWM electronic control
Remote Control: Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR
Remote Control Cable Length (max.): 25 m (82 ft.)

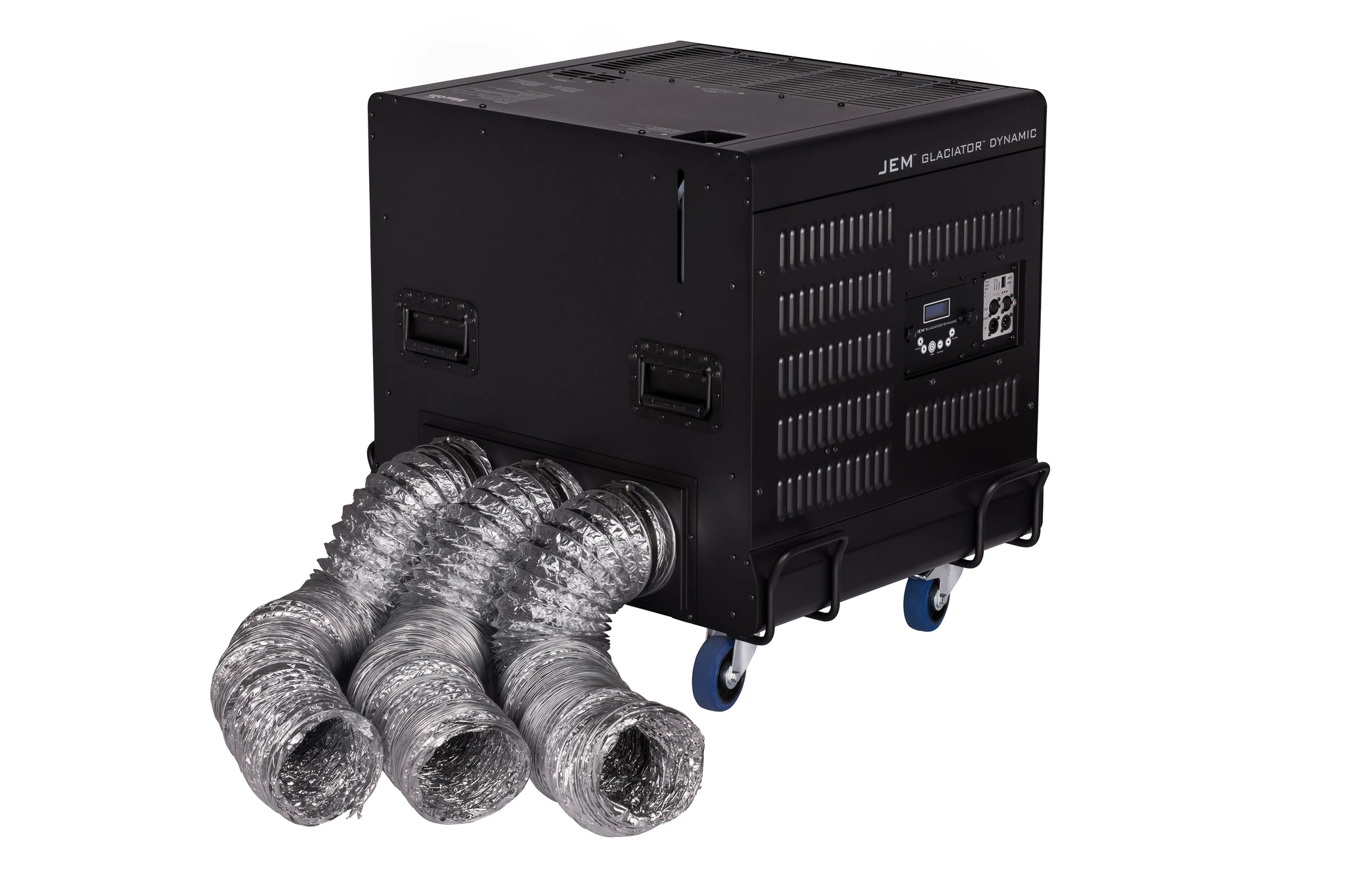

Optional Ducting Kit: Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.) OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw

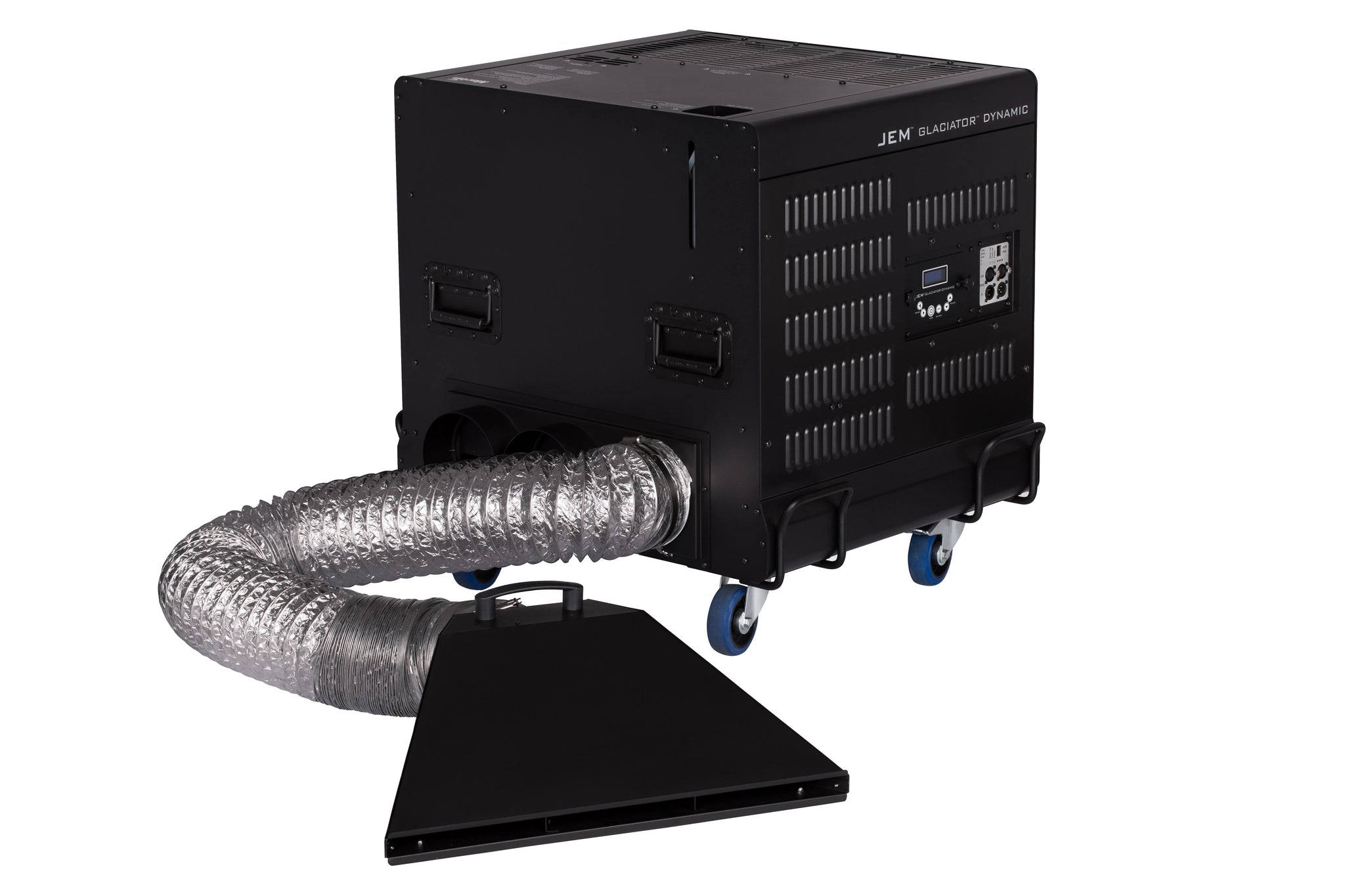

Optional Fog Blade: Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw

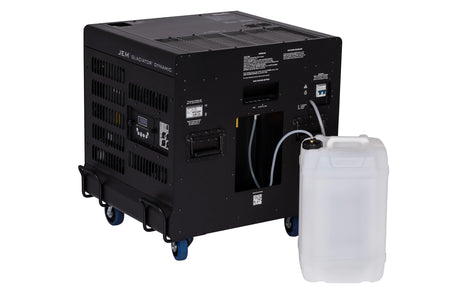

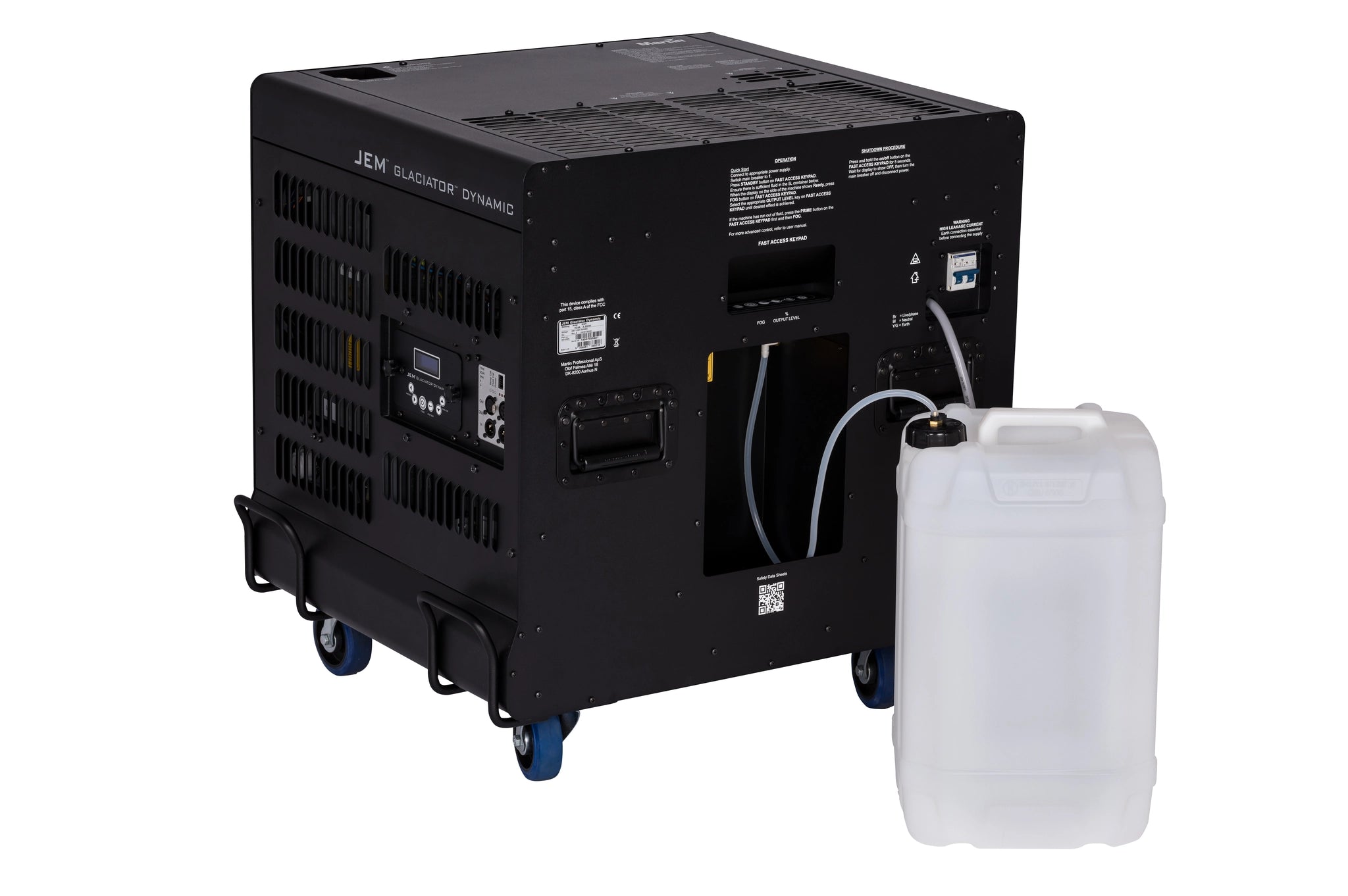

Optional External Fluid Kit: 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting
Optional Softcover: Black, heavy duty PVC external, brushed nylon padding interior, hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket
INSTALLATION
Location: Dry location only
Orientation: Horizontal Only
Clearance around machine: 60 cm (24 in.)
Ducting: Optional, max length 10 m (32.8 ft.)
CONNECTIONS
AC Power: Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.)
DMX/RDM in/out: 3- and 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Fluid inlet, low-fog fluid: Brass barbed hose tail, 6 mm
Fluid outlet, waste: Brass barbed hose tail, 6 mm
