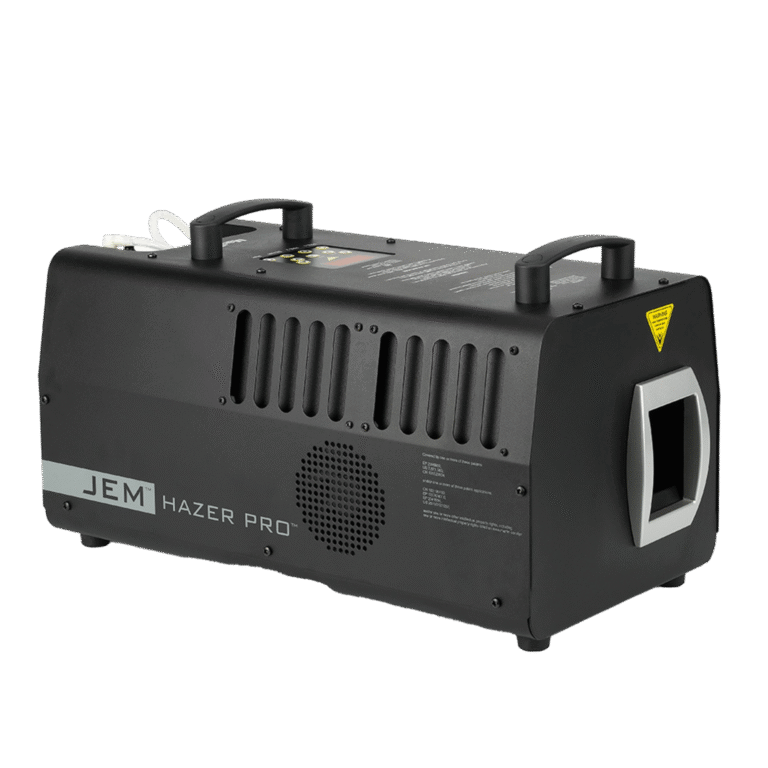

JEM HAZER PRO
FULL-SIZED PROFESSIONAL WATER-BASED HAZE MACHINE
The JEM Hazer Pro is a top of the range water-based haze machine designed for the highly demanding professional market. Its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, medium to large shows, theaters, studios, clubs, bars, cruise ships, theme parks and more.
Robust yet small and lightweight, the JEM Hazer Pro is capable of dispersing an even, continuous haze with superior optical clarity and reflectivity, the perfect small-particle haze for highlighting today’s highly defined light beams. The highly efficient JEM C-Plus Haze fluid was developed for the JEM Hazer Pro and a full reservoir can yield up to 65-hours of run time before refilling is necessary.
The JEM Hazer Pro features a battery-powered automatic shutdown system that purges the trackless heat exchanger system, thus preventing clogging, reducing maintenance and extending product life. Robust control options allow the machine to be controlled independently, remotely or with DMX featuring RDM compatibility.
- Finest haze production in its class
- Programmable fast access control keys
- Actors’ Equity/Broadway League Approved.
SPECIFICATIONS
PHYSICAL
Length: 565 mm (22.3 in.)
Width: 271 mm (10.7 in.)
Height: 298 mm (11.8 in.)
Height with rigging kit: 294 mm (11.6 in.)
Weight, dry: 15 kg (33.1 lbs.)
Weight, filled: 17.5 kg (38.6 lbs.)
ELECTRICAL
EU Model:
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 3.1 A @ 230 V *
Power Consumption
Typical: 675 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 6.0 A @ 110 V *
Power Consumption
Typical: 675 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PERFORMANCE
Coverage volume: 5500 m3 (194,231 ft3) per hour
Operating time with 2.5 l fluid (minimum/maximum): 10.5/65 hours
Operating time: Continuous
Ready time: 6-minutes
Ambient noise: Silent mode
CONTROL AND PROGRAMMING
Control options: Digital control panel, programmable fast access keys, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Haze and fan: Independent variable output, 0-100%
DMX channels: 3 (Haze, Fan, Control)
Self-cleaning cycle: Battery powered automatic shutdown, manually engaged, or DMX trigger
DMX compliance: ANSI E1.11 – USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
CONSTRUCTION
Housing: Steel and aluminum
Color: Black
Heat exchanger: 600 W trackless heat exchanger, thermally protected
Blower fan: Integrated, 200-2500 RPM
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
INSTALLATION
Mounting: Standing or optional flying kit
Orientation: Up to +/- 30° from horizontal
Clearance around machine: 100 mm (4.0 in.)
CONNECTIONS
AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 3- and 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
THERMAL
Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
APPROVALS
EU safety: EN 60 335-1
EU EMC: EN 61000-6-3, EN 62233
EU immunity: EN 61000-6-1
Australia/NZ: RCM (pending)
United Kingdom: UKCA
Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Hazer Pro and JEM C-Plus Haze Fluid.
INCLUDED ITEMS
Fluid reservoir, 2.5 l: P/N 34300521
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N M11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N M11501044
ACCESSORIES
JEM Hazer Pro, Flying Kit: P/N 92610002
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved fluids*: JEM C-Plus Haze Fluid JEM Pro Clean and Storage Fluid
Approved discontinued fluids*: JEM Pro Clean Supreme
Service Tools: Epsilon 5 AVR Programmer: P/N 50502004 Temperature Calibration Box: P/N 92620005
*Contact your dealer or see ‘Fluids’ product pages for details
ORDERING INFORMATION
JEM Hazer Pro, 120V, US: P/N 92225945
JEM Hazer Pro, 230V, EU: P/N 92225940
