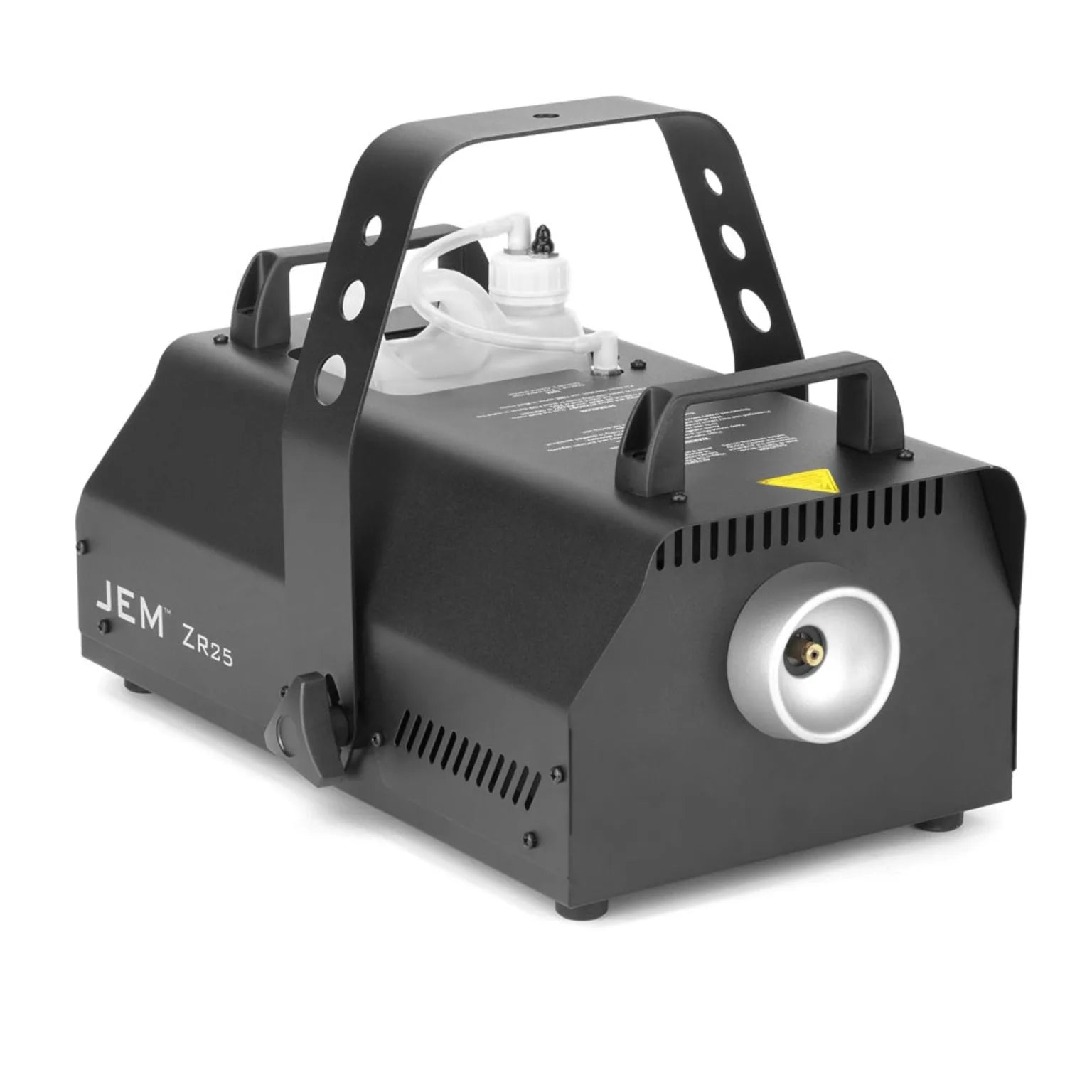

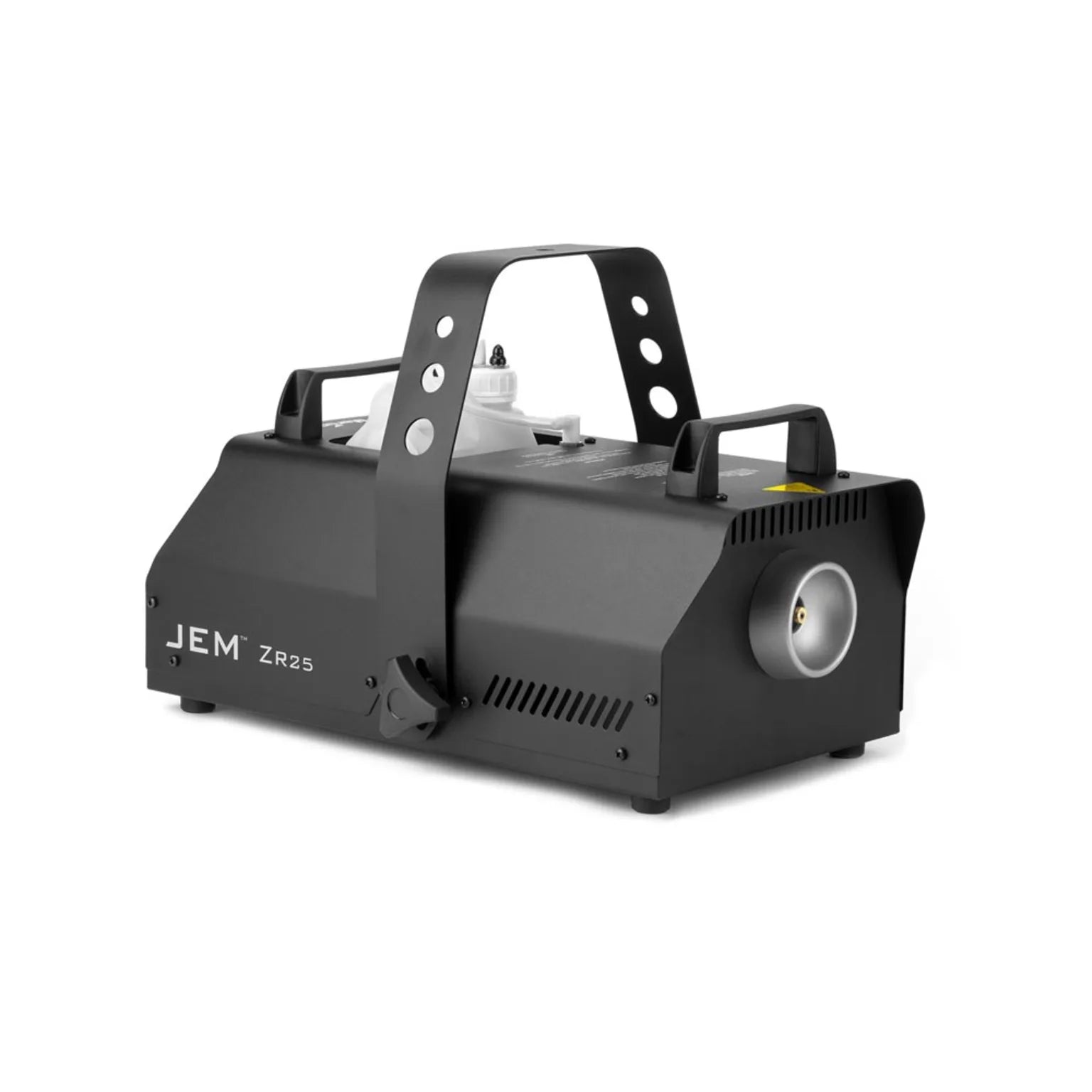

JEM ZR25
1150 WATT COMPACT-SIZED PROFESSIONAL FOG MACHINE
The JEM ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with an integrated digital remote control, and DMX with RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
- Small but powerful fog machine
- Exceptional performance and output for its size
- Simple plug-and-play operation via remote control or DMX
SPECIFICATIONS
PHYSICAL
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
ELECTRICAL
EU Model:
AC power: 220-240 V
AC nominal, 50/60 Hz
Typical current draw: 5.3 A @ 230 V *
Power Consumption
Typical: 1200 W *
US
Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 8.8 A @ 110 V *
Power Consumption
Typical: 1050 W *
* Measurements made at nominal voltage.
Allow for a deviation of +/- 10%.
PERFORMANCE
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes
Continuous effect output
CONTROL AND PROGRAMMING
Control options: Integrated digital remote control, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 – USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM DMX512-A
CONSTRUCTION
Housing: Steel and aluminum
Color: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting

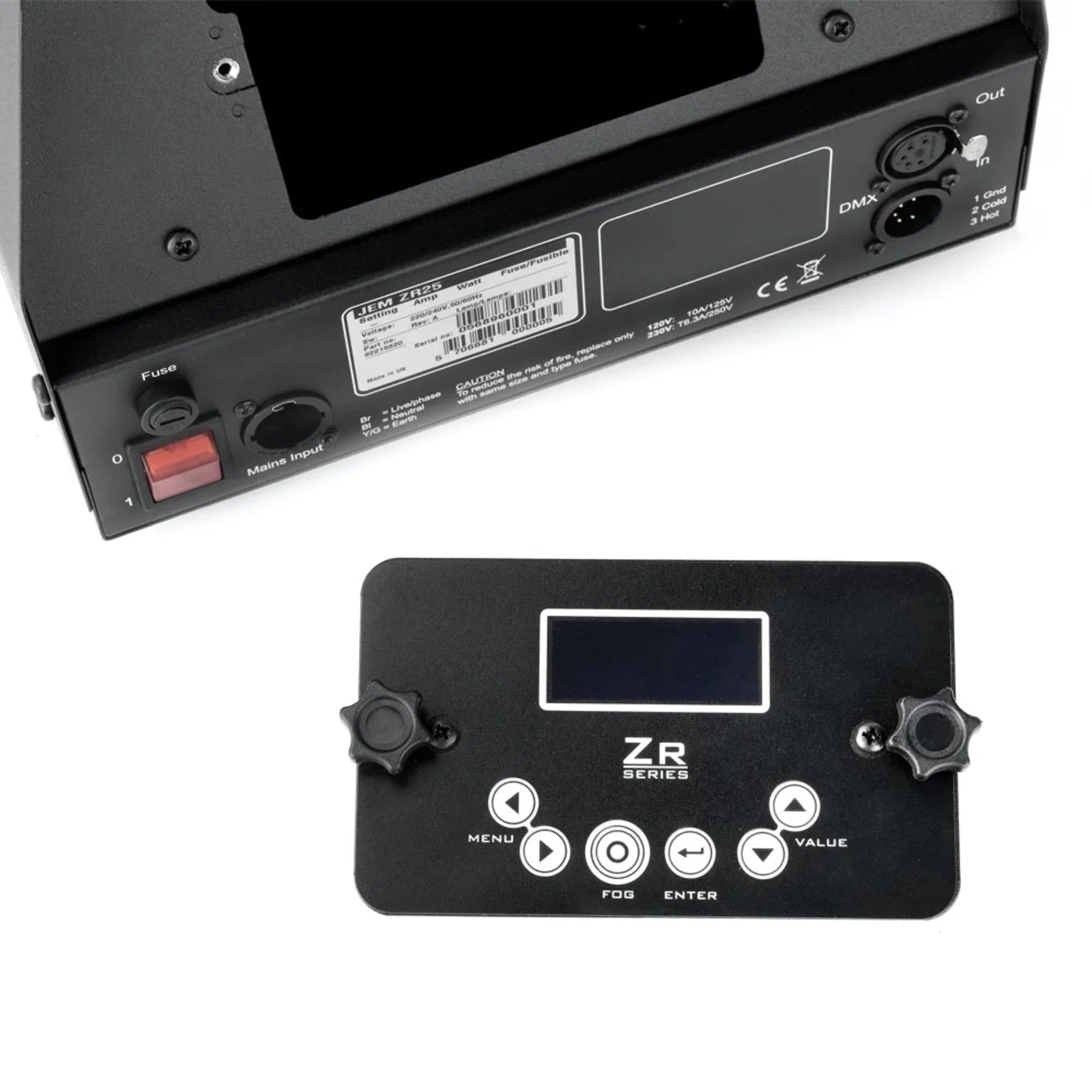

Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing

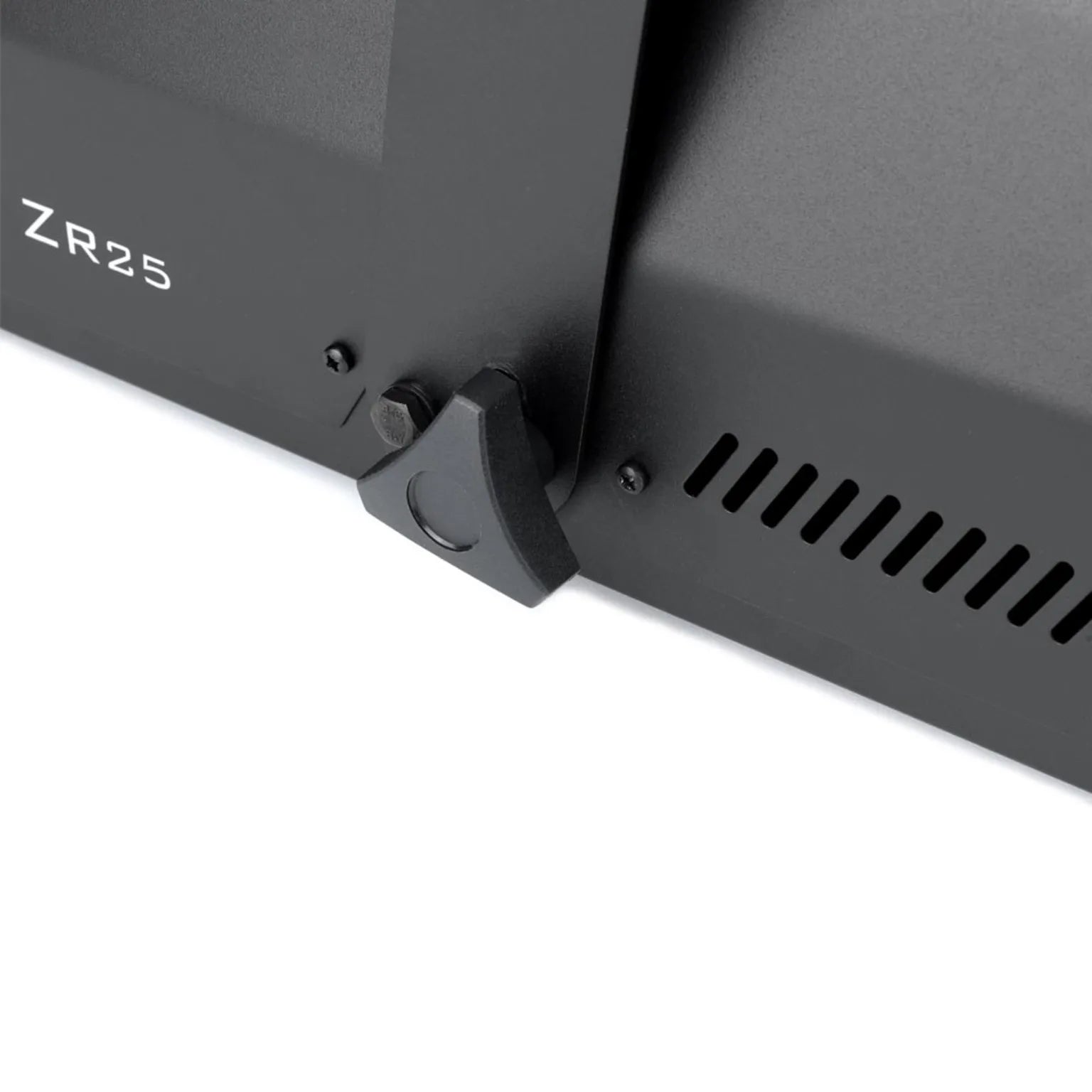

Hanging bracket: Integrated yoke with safety attachment point
INSTALLATION
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

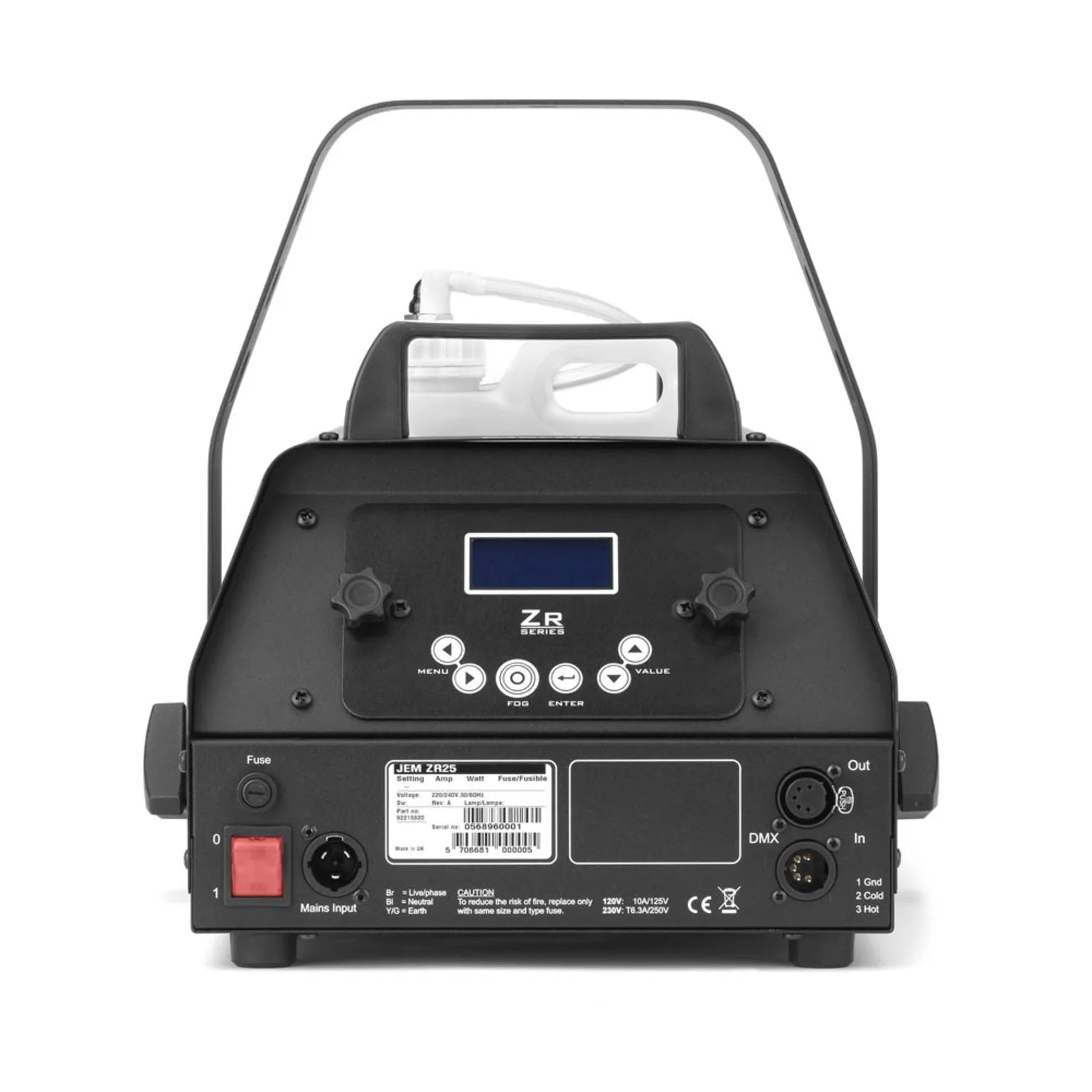

CONNECTIONS

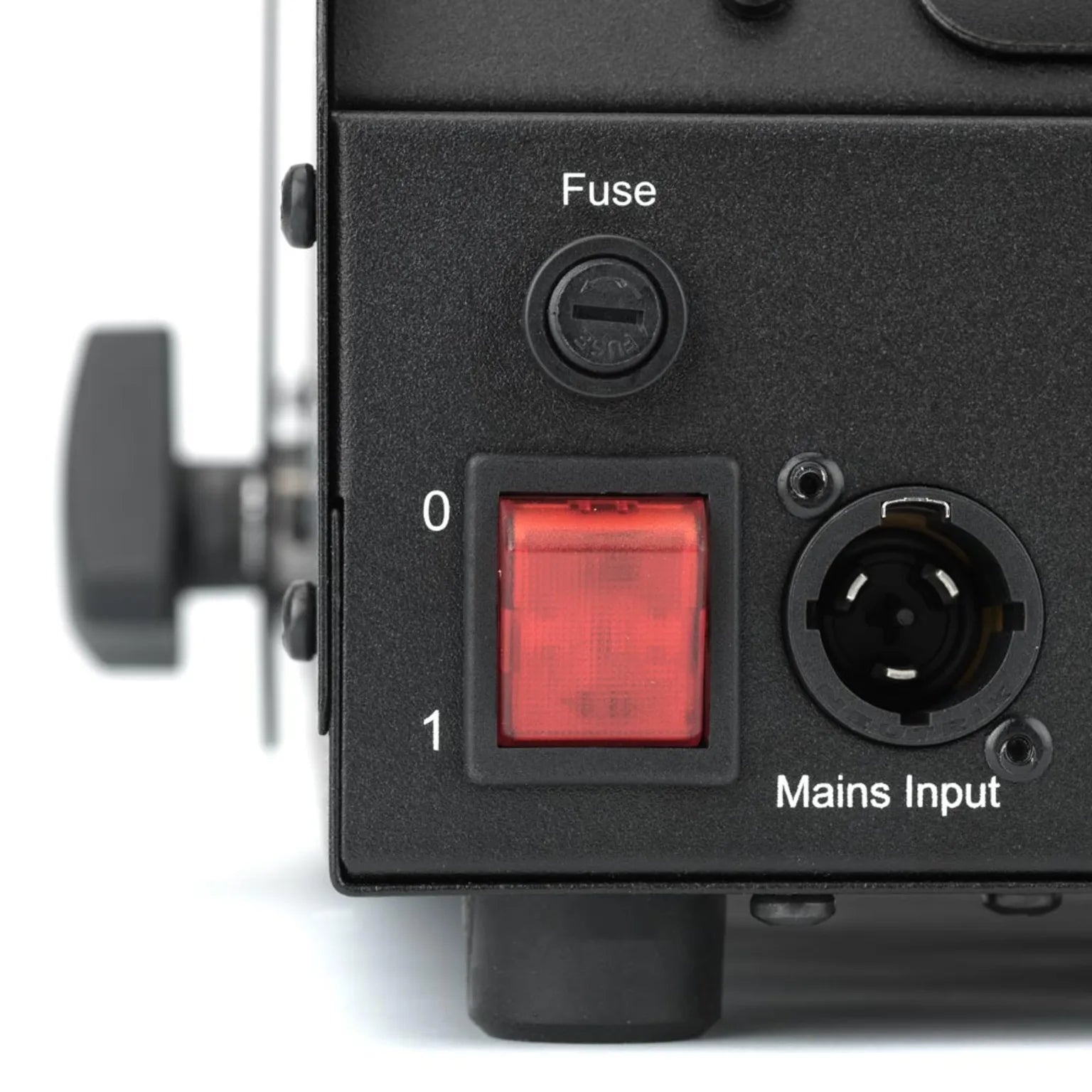

AC Power: Neutrik
PowerCON TRUE1

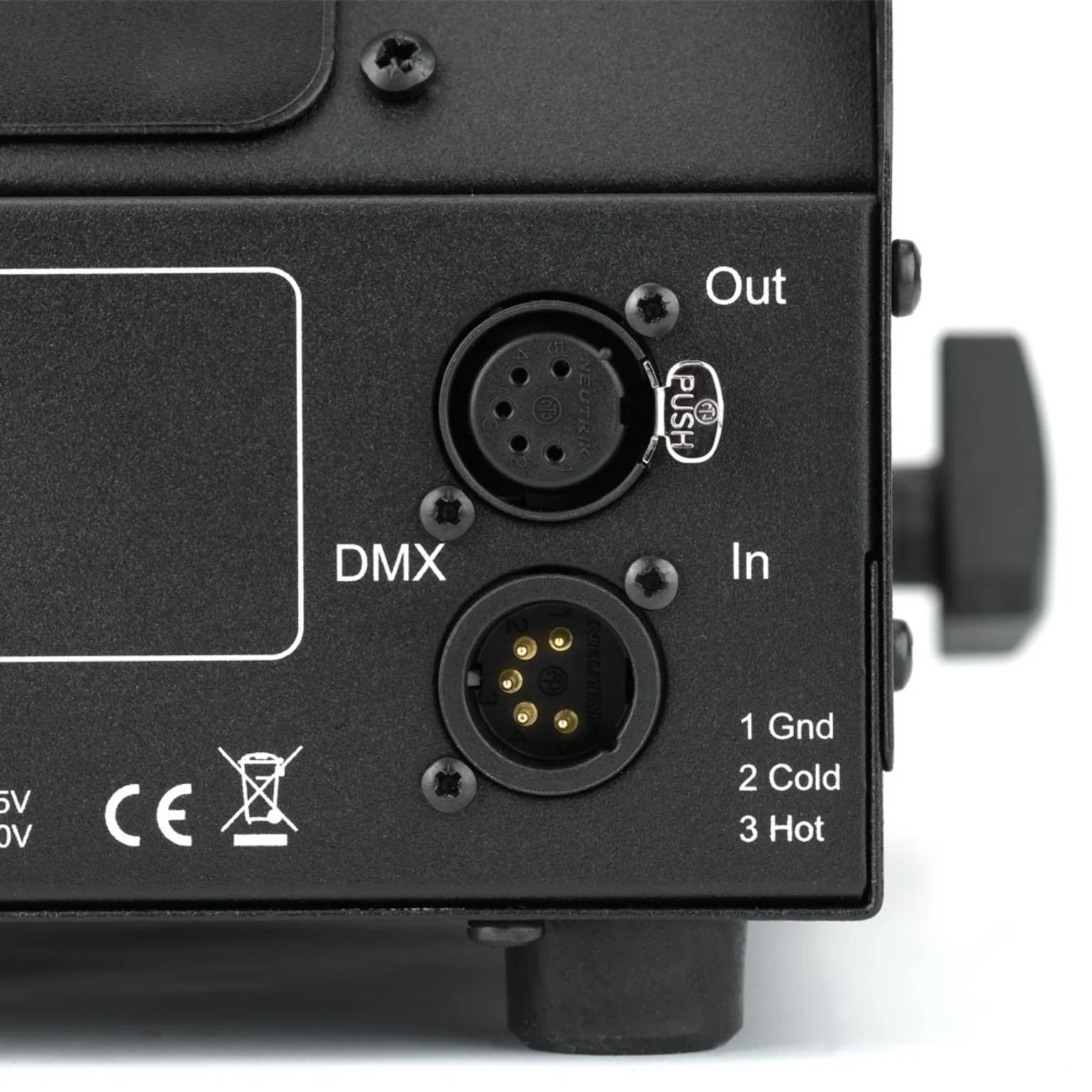

DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
THERMAL
Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
APPROVALS
EU safety: EN 60 335-1
EU
EMC: EN 61000-6-3, EN 62233
EU immunity: EN 61000-6-1
US safety: UL 998
Canadian safety: CSA C22.2 No 104
Australia/NZ: RCM (pending)
United Kingdom: UKCA
INCLUDED ITEMS
Fluid reservoir, 2.5 l: P/N 34300521
JEM ZR Series Integrated Digital
Remote Control: P/N M55765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.)
ACCESSORIES
JEM ZR25 Ducting System with 5 m (16.4 ft.) 4″ flexible ducting: P/N 92625012
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved fluids*: JEM Pro-Fog Fluid, Quick Dissipating
JEM Pro-Fog Fluid
JEM Pro-Fog Fluid, High Density
RUSH & THRILL Fog Fluid
JEM Pro-Clean and Storage Fluid
Approved discontinued fluids*: Pro Smoke Studio (DX) Pro Smoke Super (ZR) Pro Smoke High Density (SP) I-Fog Fluid Regular DJ Fluid (DJ) RUSH Fog Fluid RUSH ELX Smoke Fluid JEM Pro Clean Supreme
Service Tools: Epsilon 5 AVR
Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
*Various sizes available – contact your dealer or see ‘Fluids’ product pages for details Installation hardware:
Quick trigger clamp (vertical hanging suspension only: P/N 91602007 Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
ORDERING INFORMATION
JEM ZR25 230V, EU: P/N 92215320
JEM ZR25 120V, US: P/N 92215330
