JEM ZR 35
1500 WATT MID-SIZED PROFESSIONAL FOG MACHINE

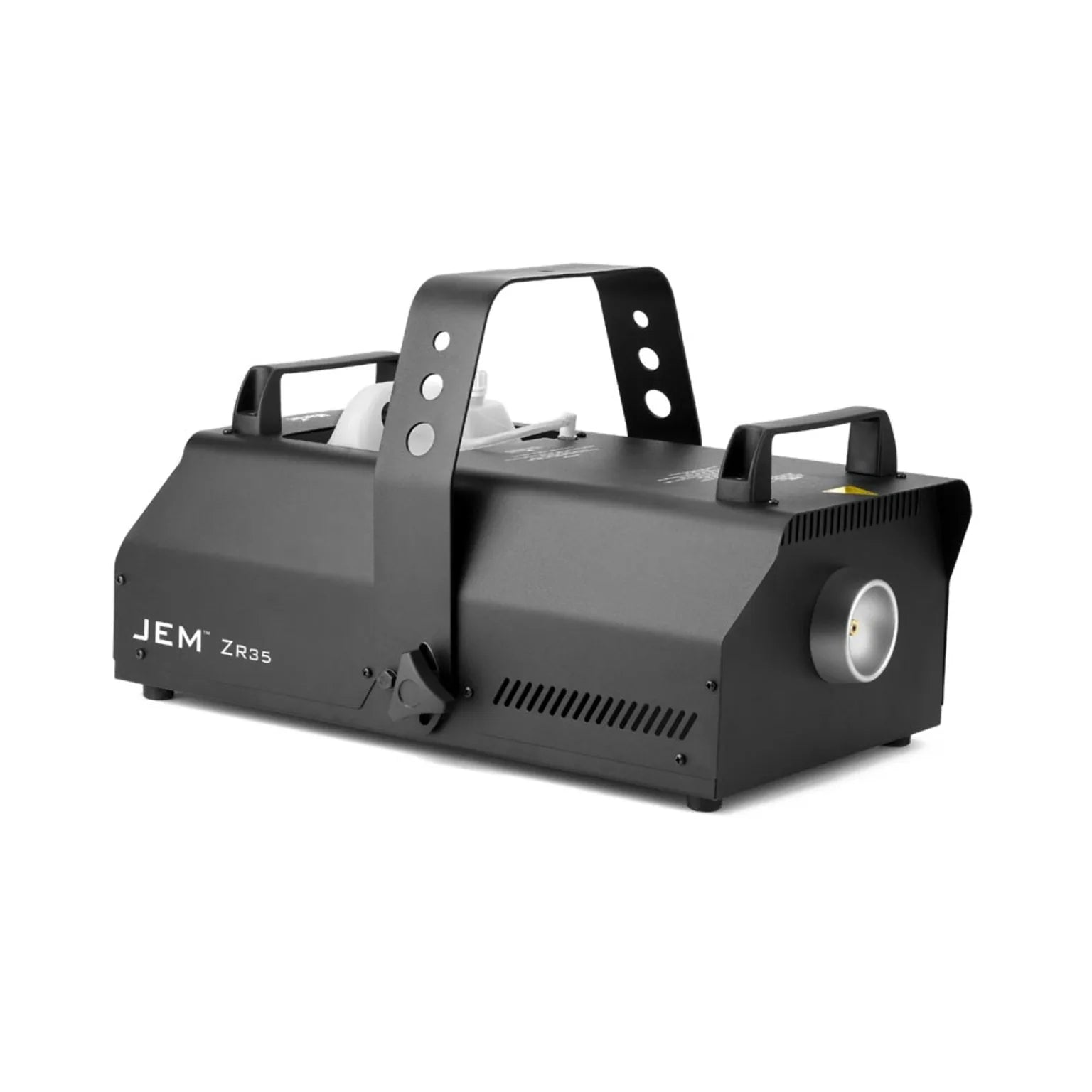

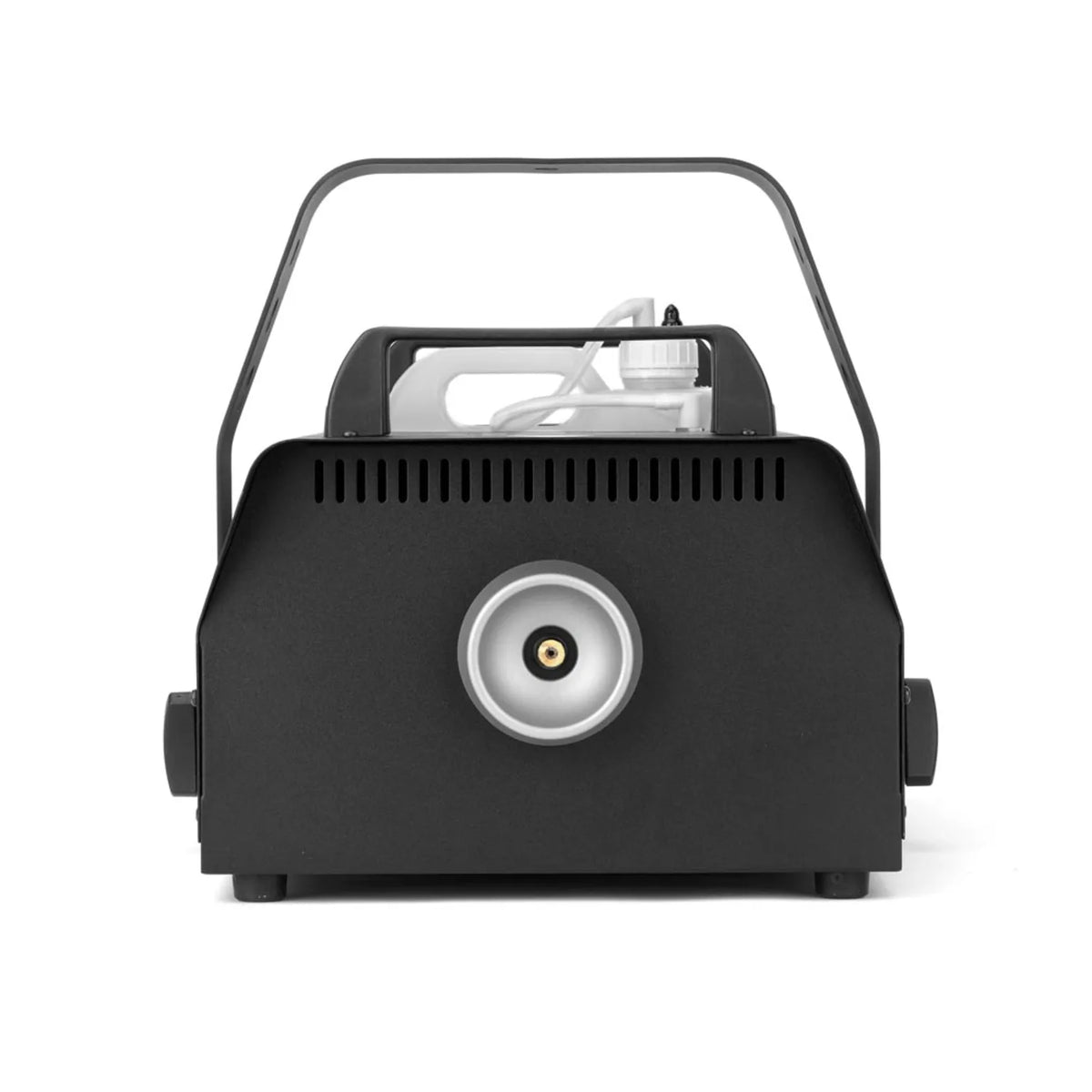

The JEM ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
- High endurance mid-sized fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM
SPECIFICATIONS
PHYSICAL
Length: 590 mm (23.3 in.)
Width: 395 mm (15.6 in.)
Height: 264 mm (10.4 in.)
Height with hanging bracket: 333 mm (13.9 in.)
Weight, dry: 15.1 kg (33.3 lbs.)
Weight, filled: 20.1 kg (44.3 lbs.)
ELECTRICAL
EU Model:
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 6.8 A @ 230 V
*
Power Consumption
Typical: 1500 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 12.1 A @ 110 V
*
Power Consumption
Typical: 1450 W *
* Measurements made at nominal voltage.
Allow for a deviation of +/- 10%.
PERFORMANCE
Coverage volume: 800 m3 (28,252 ft3) per minute
Fluid consumption (max.): 140 ml per minute
Maximum operating time, maximum output, 5 l of fluid: 1.57 hours
Ready time: 9-minutes
Continuous effect output
CONTROL AND PROGRAMMING
Control options: Integrated digital remote control, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 – USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
CONSTRUCTION
Housing: Steel and aluminum
Color: Black
Heat exchanger: 1500 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fitting
Remote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR
External Fluid Control: Fluid sensing

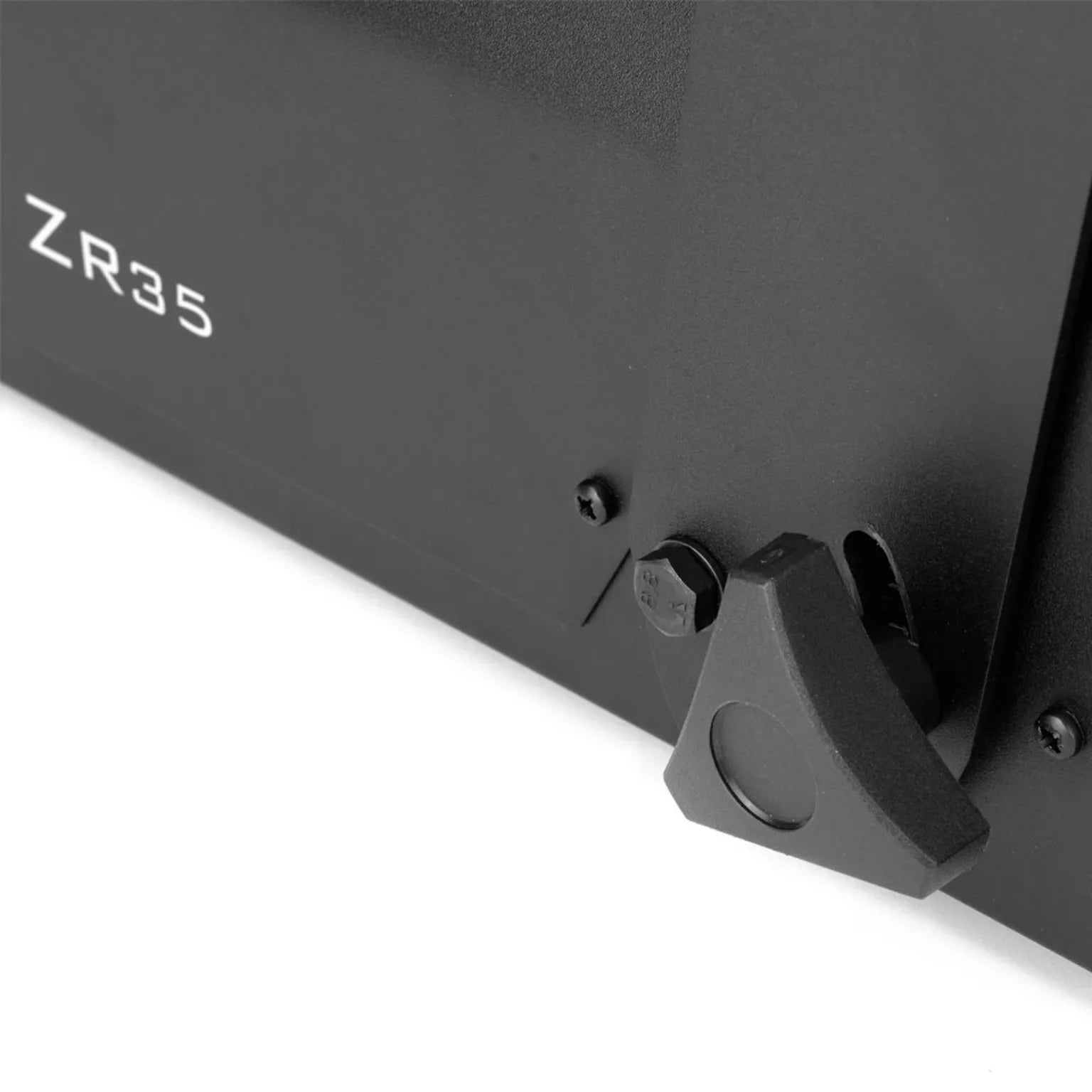

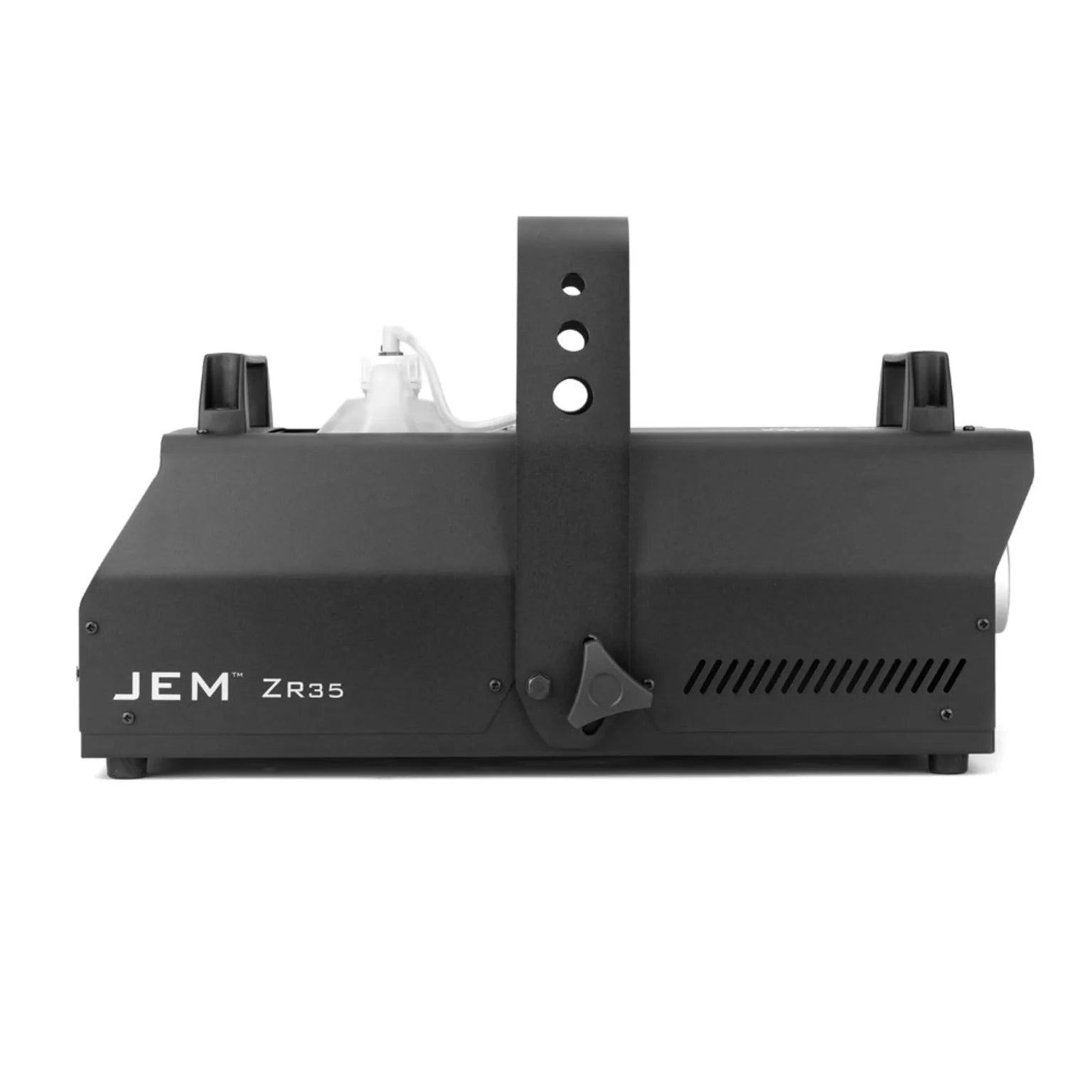

Hanging bracket: Integrated yoke with safety attachment point
INSTALLATION
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

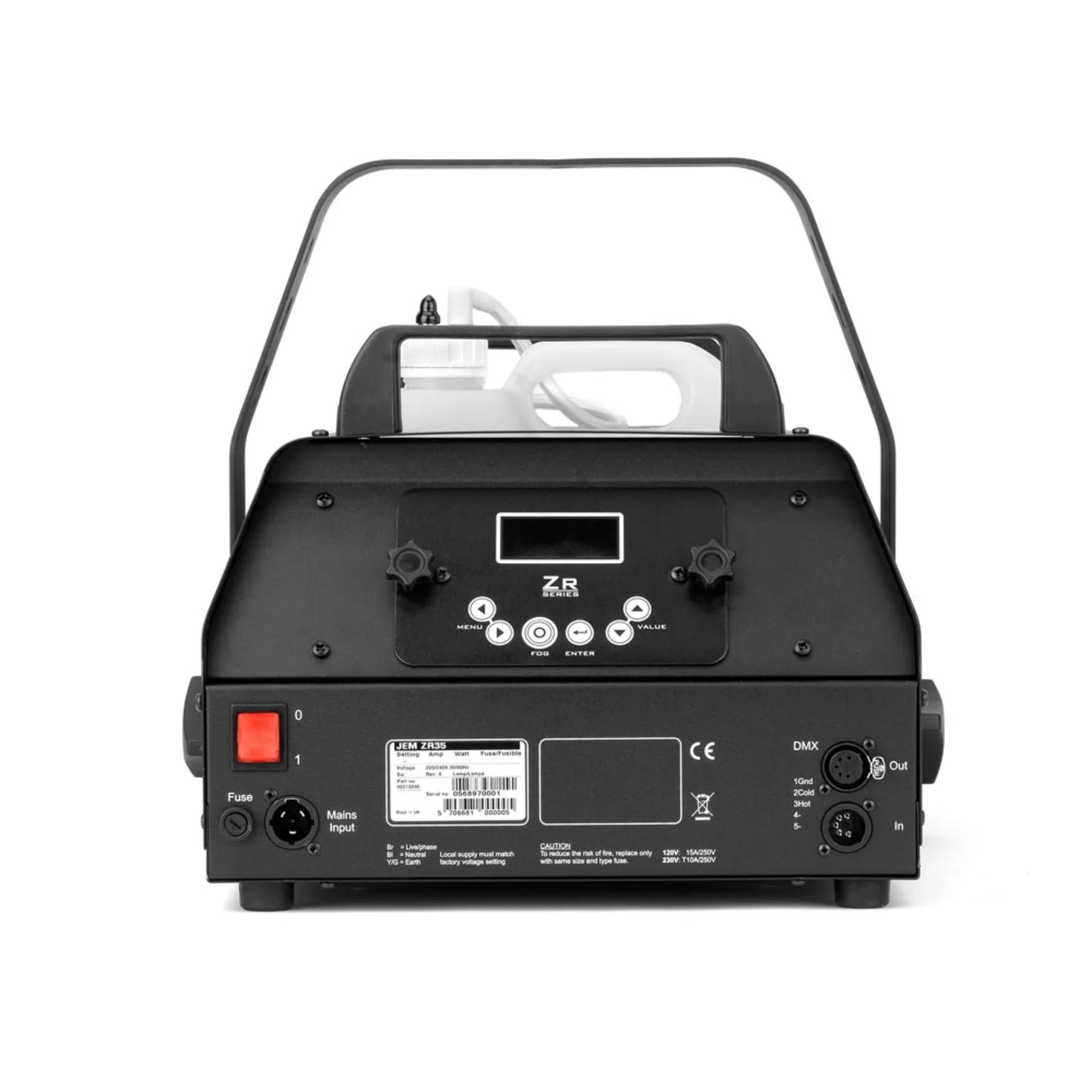

CONNECTIONS
AC Power: Neutrik PowerCON TRUE1

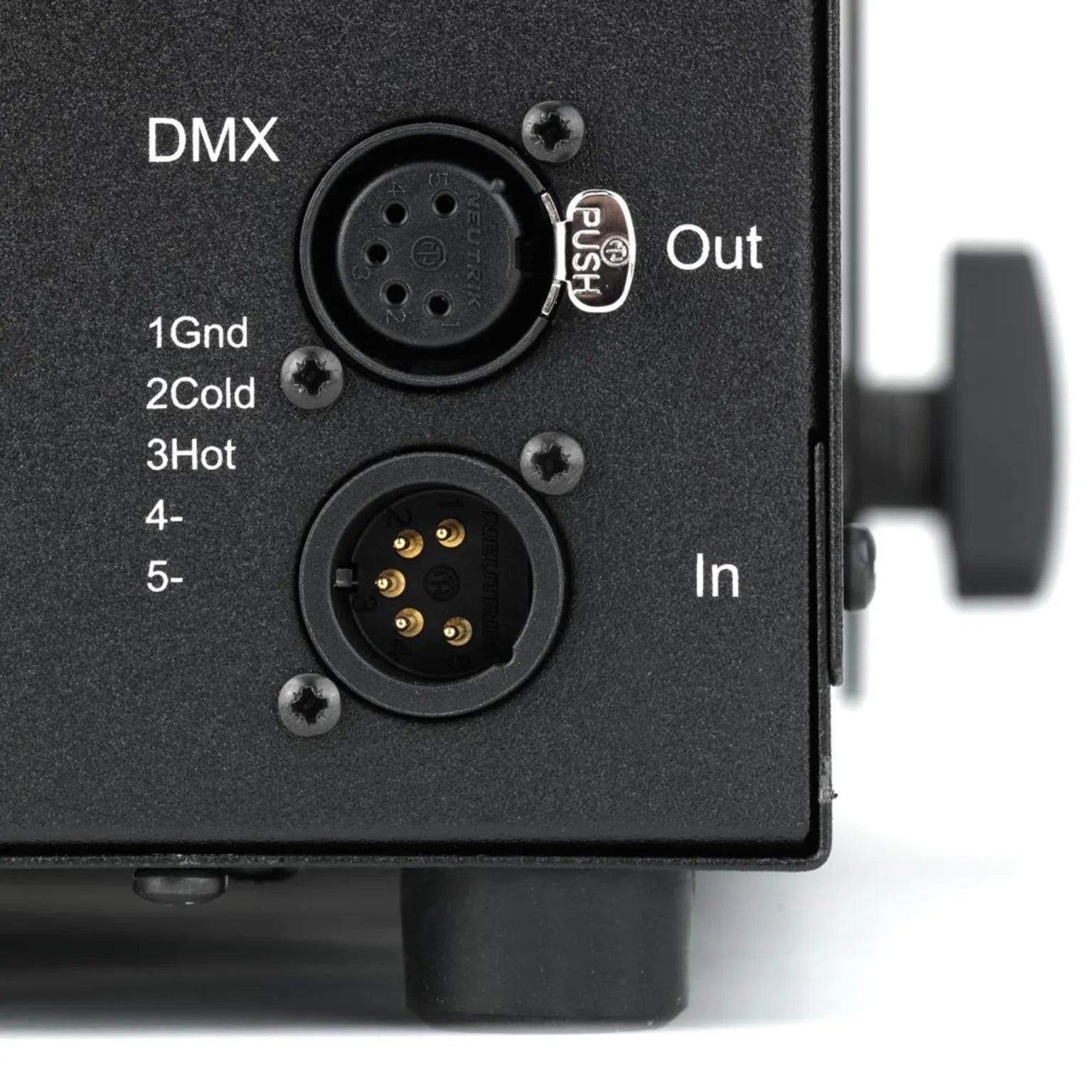

DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking
XLR
Firmware: AVR socket
THERMAL

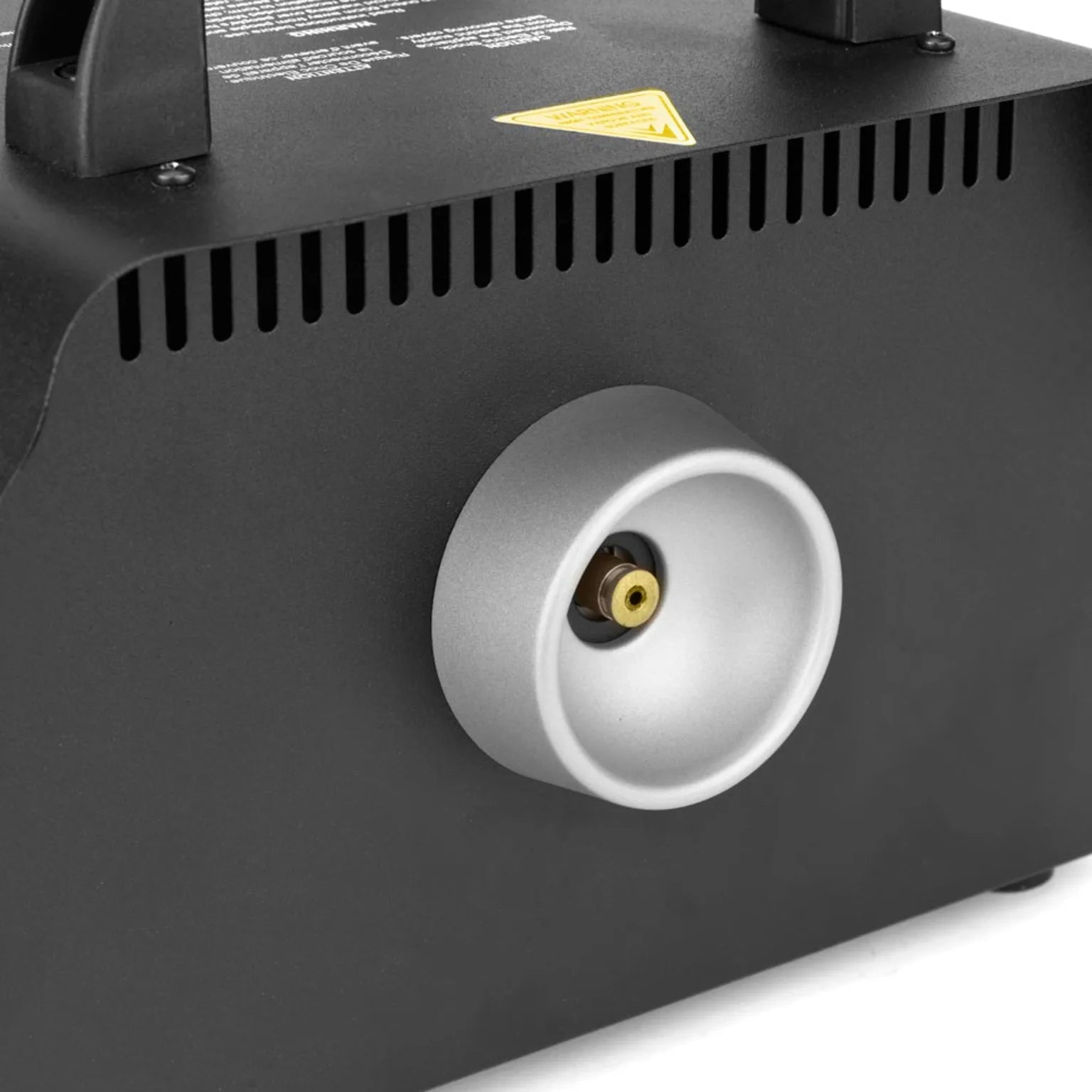

Maximum nozzle temperature: 290° C (554° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
APPROVALS
EU safety: EN 60 335-1
EU EMC: EN 61000-6-3, EN 62233
EU immunity: EN 61000-6-1
US safety: UL 998
Canadian safety: CSA C22.2 No 104
Australia/NZ: RCM (pending)
United Kingdom: UKCA
INCLUDED ITEMS
Fluid reservoir, 5 l: P/N 34300506
JEM ZR Series Integrated
Digital Remote Control: P/N M55765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 15A, PowerCON TRUE 1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501045
ACCESSORIES
JEM ZR35 Ducting System with 5 m (16.4 ft.) 4″ flexible ducting: P/N 92625013
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035 Approved fluids*: JEM Pro-Fog Fluid, Quick Dissipating JEM Pro-Fog Fluid JEM Pro-Fog Fluid, High Density RUSH & THRILL Fog Fluid JEM Pro-Clean and Storage Fluid
Approved discontinued fluids*: Pro Smoke Studio (DX) Pro Smoke Super (ZR) Pro Smoke High Density (SP) I-Fog Fluid Regular DJ Fluid (DJ) RUSH Fog Fluid RUSH ELX Smoke Fluid JEM Pro Clean Supreme Service Tools: Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005 *Various sizes available – contact your dealer or see ‘Fluids’ product pages for details
Installation hardware: Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
ORDERING INFORMATION
JEM AF-2 DMX fan, 115V, US: P/N 92615400
JEM AF-2 DMX fan, 230V, EU: P/N 92615300
